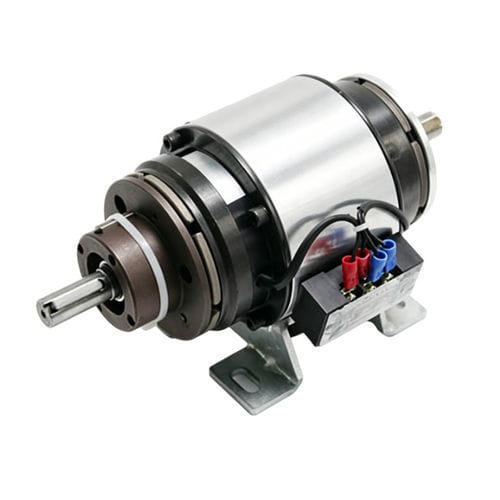

Friction combined clutch-brake unit WL80105EC

electromagneticflange-mounted

Product Overview
An exposed electromagnetic clutch-brake is a compact power transmission unit combining clutch engagement and braking in one assembly. The open construction improves ventilation and inspection access, facilitating heat dissipation and maintenance. This model is designed for industrial automation tasks requiring frequent start/stop cycles and fast response times, such as packaging, printing and conveyor indexing.

Key Features

• Integrated clutch and brake in a single compact assembly
• Exposed/open structure for enhanced ventilation and heat dissipation
• Fast response, stable torque transmission and low operational noise
• Flange fixed installation for straightforward mounting and alignment
• Suitable for frequent start/stop cycles and high-speed indexing

Product Datasheet (selected technical values)
24V Exposed Electromagnetic Clutch-Brake — Selected values:

• Brand: Weilong Technology
• Model Number: WL80105EC (product title) / WL8015EC (datasheet)
• Rated Voltage: DC 24 V
• Rated Power: 24 W
• Work Model: Power on to hold
• Holding Force: 0.6 Kg
• Clutch Type: Flange Fixed Type
• Reset Time: 0.3 s on / 0.3 s off
• Service Life: 100,000 cycles
• Material: Carbon steel housing with Teflon-plated coating
• Lead Wire Length: 300 mm
• Install Style: Flange
• Tolerance: +/- 0.1 mm
• Insulation Class: F (155°C)
• Working Temperature: -10°C to 100°C
• Duty Cycle: 1–100%
• Certifications: CE, RoHS, ISO9001
• MOQ: 1000 pcs — Supply: 5000 pcs/week — Delivery: 30 days

Applications
Commonly used for feed control, cutting, labeling and indexing in packaging machines; paper feed and tension control in printing equipment; spin/wind control in textile machinery; positioning and stopping in conveyor systems. Also applicable to wire processing, food processing, woodworking, medical devices and robotic automation where quick engagement and stopping are required.

Advantages and Disadvantages

• Advantages: quick response; combined clutch-brake saves installation space; open design improves cooling and eases inspection and maintenance; stable operation with low vibration.
• Disadvantages: exposed components are more susceptible to dust, moisture and oil contamination and require regular maintenance; possible heating under heavy continuous duty; requires stable power supply and intact coil insulation.

Troubleshooting
Common faults: slippage (worn friction surfaces, oil contamination, overload); overheating (excessive duty, poor ventilation, wrong voltage); abnormal noise (loose mounting, bearing wear, misalignment); weak torque (low voltage, coil damage, worn friction, incorrect air gap); slow response (electrical connection issues, coil malfunction, mechanical wear). Recommended actions: clean or replace friction parts, verify voltage and wiring, improve cooling and ventilation, check alignment and mounting, replace worn components.

FAQ (selected)

• What is an exposed magnetic clutch-brake? — A compact electromagnetic unit that combines clutch engagement and braking for controlled torque transmission and rapid stop/start.
• How does it operate? — Electromagnetic attraction engages the clutch to transmit torque; releasing or applying braking elements stops rotation.
• Which industries use it? — Packaging, printing, textiles, conveyors, automation, food processing and other industrial sectors.
• How to choose the right model? — Base selection on required torque, voltage, speed, duty cycle, shaft dimensions, installation space and ambient conditions.

Technical specifications

• Brand: Weilong Technology
• Model Number: WL80105EC / WL8015EC
• Rated Voltage: DC 24 V
• Rated Power: 24 W
• Work Model: Power on to hold
• Holding Force: 0.6 Kg
• Clutch Type: Flange Fixed
• Reset Time: 0.3 s on / 0.3 s off
• Service Life: 100,000 cycles
• Material: Carbon steel housing with Teflon-plated coating
• Lead Wire Length: 300 mm
• Tolerance: +/- 0.1 mm
• Insulation Class: F (155°C)
• Working Temperature: -10°C to 100°C
• Duty Cycle: 1–100%
• Certifications: CE, RoHS, ISO9001
• Warranty: 1 Year
