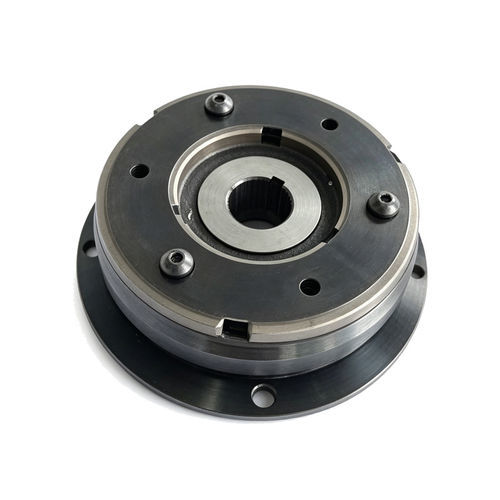

Friction clutch WL6318

electromagneticelectromechanicalflange-mounted

Product Overview
The WL6318 24V electromagnetic clutch is an electromechanical device operating on DC 24 V that controls torque transfer between two rotating shafts via magnetic actuation of an internal coil. When energized the armature plate is drawn into contact with the rotor to transmit motion; when de-energized the clutch disengages. The design suits industrial automation needs such as conveyors, packaging machines, robotics and precise positioning systems.

Key Features

• Operates on DC 24 V (PLC-friendly)
• Fast response with accurate engagement control
• Compact flange-fixed configuration for straightforward integration
• Consistent torque transmission with low noise and vibration
• High duty-cycle capability and replaceable friction material
• Compatible with PLC systems for automated control

Product Video
Includes a demonstration video presenting engagement behavior, mounting steps and typical application examples.

Detailed Display / Gallery
High-resolution images show multiple views and variants: compact types, higher-torque versions, application photos and close-ups of friction surfaces and mounting flanges.

Industrial Applications
Common uses: conveyors, packaging machinery, robotics, CNC machines, printing presses, textile equipment, food processing lines and automotive compressors — ideal where smooth start/stop control, precise positioning and repeatable engagement are required.

Advantages & Disadvantages

• Advantages: responsive engagement, precise motion control, energy-efficient 24V operation, compact footprint, low maintenance and long service intervals.
• Disadvantages: heat generation under continuous heavy use (may require ventilation), wear of friction materials over time, limited torque on smaller models, sensitivity to supply voltage stability and installation alignment.

Troubleshooting Summary

• Electrical checks: verify 24V supply under load, inspect grounding and connectors, measure coil resistance (typical ~20–30 Ω at ambient).
• Mechanical checks: inspect air gap and armature stroke, verify alignment, remove oil/grease from friction surfaces.
• Overheating: causes include undervoltage, continuous operation beyond duty rating, slippage, high ambient temperature or poor ventilation.
• Preventative maintenance: keep clutch clean, tighten electrical connections, measure and adjust air gap at recommended intervals, follow duty-cycle limits.

FAQ Highlights

• Normal coil resistance: ~20–30 Ω at ambient; open = broken coil, very low (<5 Ω) = shorted coil.
• Do not use 12V (insufficient) or 48V (will damage coil); use specified 24V DC ±10%.
• Typical air gap: 0.3–0.7 mm; check every 500–1000 operating hours or if slippage is detected.

Technical specifications

• Brand: Weilong Technology
• Model Number: WL6318
• Rated Voltage (V): DC 24 V
• Rated Power (W): 5.8 W
• Work Model: Power on to hold
• Holding Force: 1500 GF
• Electromagnetic clutch type: Flange Fixed Type
• Reset Time(s): 0.3 sec on / 0.3 sec off
• Service Life: ~100,000 cycles
• Certification: CE, RoHS, ISO9001
• Material: Carbon steel housing with Teflon-plated coating
• Lead Wire Length (mm): 200
• Install Style: Adjustable screw
• Tolerance of Dimension: ±0.1 mm
• Water-proof: None
• Insulation Class: F (155 °C)
• Hi-Pot Test: AC 600V 50/60Hz 2s
• Non-excitation Holding Force: 0
• Working Temperature: -10 °C to 100 °C
• Duty Cycle: 1–100%
• Thread Depth (mm): /
• Payment Term: TT or LC at sight
• Sample Order: Yes
• Warranty: 1 Year
• MOQ: 1000 pcs
• Supply Ability: 5000 pcs per week
• Delivery Time: 30 Days
• Port of Loading: Shenzhen
