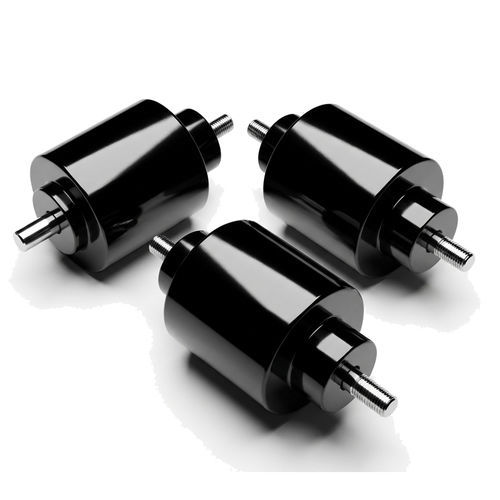

Linear solenoid WL4545

compact24-voltDC

Product overview
The AS 4545 push-pull solenoid actuator from Weilong Technology is a compact electromagnetic linear actuator designed for industrial and commercial automation. It converts electrical energy into controlled linear motion using an optimized coil and magnetic circuit within a carbon steel housing with zinc plating. The unit is available in standard 24V DC (12V option possible) and is suited for applications requiring fast response and short strokes.

Design & operation
The actuator delivers bidirectional (push and pull) linear movement with a stroke range of 5–8 mm. Its design emphasizes a balanced magnetic circuit and coil layout to provide stable response and repeatable force. Mounting is via three side holes for straightforward integration. Key electrical and mechanical parameters can be selected by engineers (voltage, stroke, mounting orientation) to match OEM requirements.

Applications

• Electronic locks and access control
• Vending and dispensing equipment
• Industrial automation and switch actuation
• Medical devices requiring short linear travel
• OEM control systems and intelligent mechanisms

Key advantages

• Compact footprint for space-constrained assemblies
• Fast, repeatable linear actuation for switching, latching and positioning
• Wide duty-cycle capability depending on configuration (design-dependent)
• Standard voltage options (24V DC; 12V available) for system compatibility
• Simple mechanical integration with three-side mounting holes

Limitations & design considerations

• Limited stroke compared with electric cylinders and motor-driven actuators
• Heat generation under continuous duty — requires appropriate duty-cycle planning
• Provides fixed linear motion only (no rotary or complex kinematics)
• Available force decreases with increased stroke — verify against application load
• Requires stable DC supply for consistent performance

Product datasheet
Brand: Weilong Technology
Model number: AS 4545
Rated voltage: DC 24 V (12 V option available)
Rated power: 32 W
Work model / lifespan: up to 1,000,000 cycles (configuration dependent)
Holding force: ~3000 GF
Stroke: 5–8 mm
Reset time: typical 1–3 s (depending on circuit and load)
Service life: up to hundreds of thousands to 1 million cycles
Certifications: CE, RoHS, ISO9001
Material: carbon steel housing with zinc-plated coating
Lead wire length: 200 mm
Installation: side mounting with three screw holes
Dimensional tolerance: +/- 0.1 mm
Waterproof: none (not rated for immersion)
Insulation class: F (150°C)
Hi-pot test: AC 600V 50/60Hz 1 s
Non-excitation holding force: 0
Operating temperature: -10°C to 100°C
Duty cycle: 1–100% (design dependent)
Thread depth: N/A
Payment terms: TT or LC at sight
Sample order: available
Warranty: 1 year
MOQ: 500 pcs
Supply ability: ~5000 pcs/week
Delivery time: ~30 days
Port of loading: Shenzhen

Technical specifications

• Model: AS 4545
• Brand: Weilong Technology
• Rated voltage: DC 24 V (also available in 12 V)
• Rated power: 32 W
• Stroke: 5–8 mm
• Holding force: ~3000 GF
• Service life: up to hundreds of thousands to 1,000,000 cycles
• Housing material: carbon steel, zinc plated
• Lead wire length: 200 mm
• Insulation class: F (150°C)
• Operating temperature range: -10°C to 100°C
• Duty cycle: 1–100% (application dependent)
• Certifications: CE, RoHS, ISO9001
• MOQ & logistics: MOQ 500 pcs, supply ~5000 pcs/week, typical delivery ~30 days
