Valve solenoid WL3257

holdinglinearlocking

Product overview

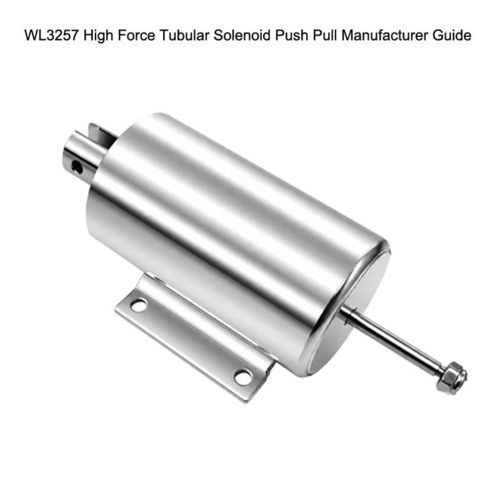

The WL3257 Tubular Push-Pull Solenoid is a compact electromagnetic linear actuator designed for industrial automation. Its cylindrical magnetic circuit provides high force density in a small envelope. Available in push, pull or push-pull configurations with configurable stroke, voltage and force to suit machine integration and control requirements.

How it works

• Electrical input: DC voltage applied to the copper coil.
• Magnetic field generation: current in the coil creates a magnetic field around the iron core.
• Plunger movement: the magnetic field draws the plunger along the tubular housing.
• Mechanical output: linear plunger travel produces pushing or pulling force on the load.
• Return: internal spring or external mechanism returns the plunger when de-energized.
• Output force depends on coil turns, current, magnetic material, air gap, stroke and mechanical design.

Main features

• High force density with precise stroke control.
• Cylindrical housing for improved magnetic efficiency and reduced friction.
• Compact dimensions for tight installation spaces.
• Customizable voltage, stroke, force level and mounting options.
• Manufactured with CNC machining, precision stamping, automatic coil winding and automated testing for consistency.

Applications

• Industrial automation and machine control: positioning, feeding and sorting systems.
• Robotics: locking, releasing, gripping and positioning mechanisms.
• Valve actuation for fluid, gas and pneumatic controls.
• Medical devices, pumps, testing equipment and laboratory automation.
• Security: electronic locks and access control systems.
• Vending machines, agricultural machinery, automotive systems, office automation and OEM equipment.

Technical specifications

• Brand: Weilong Technology
• Model Number: WL3257
• Rated Voltage (V): DC 12 V, 24 V, 48 V, 60 V
• Rated Power (W): 20-10 W
• Work Model: Tubular Push-Pull Type
• Holding Force (N): 1-20 N
• Stroke (mm): 2-10 mm
• Reset Time (s): 0.3
• Service Life: 300,000 cycles
• Certification: CE, RoHS, ISO9001
• Material: Carbon steel housing with zinc-plated coating
• Power Contact: DC socket
• Install Style: Adjustable screw and cap
• Tolerance of Dimension: ±0.1 mm
• Water-proof: None
• Insulation Class: F
• Hi-Pot Test: AC 600 V 50/60 Hz 2 s
• Non-excitation Holding Force: 0
• Working Temperature: -10°C to 100°C
• Duty Cycle: 1–100%
• Thread Depth (mm): 3–5 mm
• Payment Term: TT or LC at sight
• Sample Order: Yes
• Warranty: 1 year
• MOQ: 1000 pcs
• Supply Ability: 5000 pcs per week
• Delivery Time: 30 days
• Port of Loading: Shenzhen
