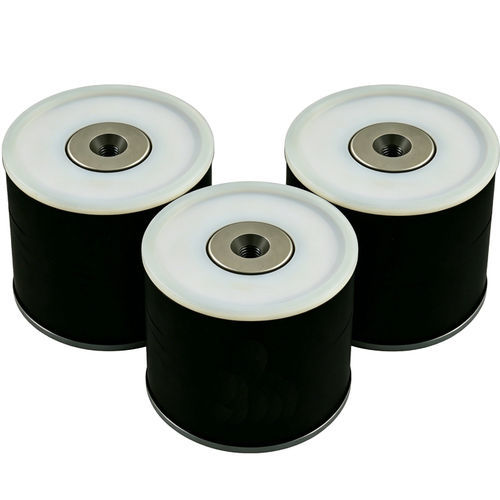

Electromagnetic coil WL8580

230 VACsolenoid

Product Overview

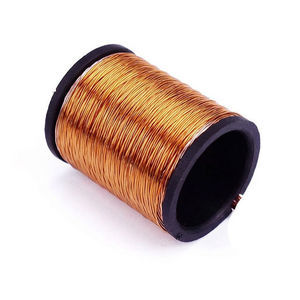

The WL8580 AC bobbin coil is a precision-wound electromagnetic coil designed for AC solenoid and actuator applications. Constructed with copper winding and Class F insulation, it provides stable magnetic force and predictable switching performance. Available in multiple voltage ratings and OEM customization options suitable for industrial use and integration.

Product Features

• Precision-wound copper wire for efficient electromagnetic conversion.
• Class F insulation (155°C) for high thermal tolerance.
• Uniform magnetic force optimized for solenoid valves and actuators.
• Multiple voltage ratings and customizable designs for OEM integration.
• Lead wires and dimensional tolerances suitable for assembly line installation.

Product Datasheet
Brand: Weilong Technology
Model Number: WL8580
Rated Voltage: AC 110V, 230V
Rated Power (W): 1000–1500 W
Service Life: 100,000 cycles
Certification: CE, RoHS, ISO9001
Material: Copper coil
Lead Wire Length (mm): 200
Install Style: TBD
Tolerance of Dimension: +/- 0.1 mm
Water-proof: None
Insulation Class: F (155°C)
Hi-Pot Test: AC 600V 50/60Hz 1 s
DC Resistance: 134 Ω
Working Temperature: -10°C to 100°C
Duty Cycle: 1–100%
Materials: RoHS Compliance
Payment Term: TT, or LC At Sight
Sample Order: Yes
Warranty: 1 Year
MOQ: 1000 pcs
Supply Ability: 500,000 pcs per week
Delivery Time: 30 Days
Port of Loading: Shenzhen

How Does A Bobbin Coil Work (AC)?

• AC is applied to the coil winding.
• Current through the copper wire generates a magnetic field.
• The magnetic field pulls the ferromagnetic plunger or armature.
• Mechanical movement of the plunger produces actuation.
• When power is removed, a return spring restores the plunger to its initial position.
• Shading rings are often used in AC solenoid systems to maintain attraction through zero crossings.

AC Bobbin Coil Main Features

• Heavy-duty electromagnet design with uniform magnetic force.
• Efficient electromagnetic conversion and reliable insulation system.
• Fast response and durable switching performance for industrial cycles.
• Compact form factor for mounting inside valves and actuators.
• Available in multiple voltages and OEM variants.

Industrial Applications

• Solenoid valves for liquid and gas regulation in pneumatic and hydraulic systems.
• Actuators and relays in industrial control and automation equipment.
• HVAC valve and damper control systems.
• Automated water treatment and process control valves.
• Agricultural irrigation systems, vending machines, medical devices, packaging and material handling equipment.

Advantages and Disadvantages
Advantages

• Simple, serviceable design suitable for mass production.
• Cost-effective with flexible OEM customization.
• High magnetic force per unit volume for reliable actuation.
• Long operational life under specified duty cycles.
• Low maintenance requirements and quick switching response.

Disadvantages

• Heat generation during continuous operation requiring thermal management.
• Possible audible humming in AC operation.
• Magnetic force sensitive to supply voltage fluctuations.
• Higher power consumption compared with some DC coil designs.
• Performance can degrade at extreme temperatures or with incorrect voltage.

Troubleshooting Guide (selected items)

• No power: verify supply, connections and measure coil resistance.
• Overheating: check operating voltage, duty cycle, cooling and for shorted windings.
• Weak actuation: verify voltage supply, armature position, air gap and wear on magnetic parts.
• Humming/noise: inspect shading rings, plunger fit and mounting stability.
• Coil burnout: check for voltage overload, insulation condition and excessive current draw.
• Intermittent operation: inspect terminals, connections and power stability.

Technical specifications

• Brand: Weilong Technology
• Model Number: WL8580
• Rated Voltage: AC 110V, 230V
• Rated Power: 1000–1500 W
• Service Life: 100,000 cycles
• Certifications: CE, RoHS, ISO9001
• Material: Copper coil
• Lead Wire Length: 200 mm
• Tolerance of Dimension: +/- 0.1 mm
• Insulation Class: F (155°C)
• Hi-Pot Test: AC 600V 50/60Hz 1 s
• DC Resistance: 134 Ω
• Working Temperature: -10°C to 100°C
• Duty Cycle: 1–100%
• MOQ: 1000 pcs
• Supply Ability: 500,000 pcs per week
• Delivery Time: 30 days
