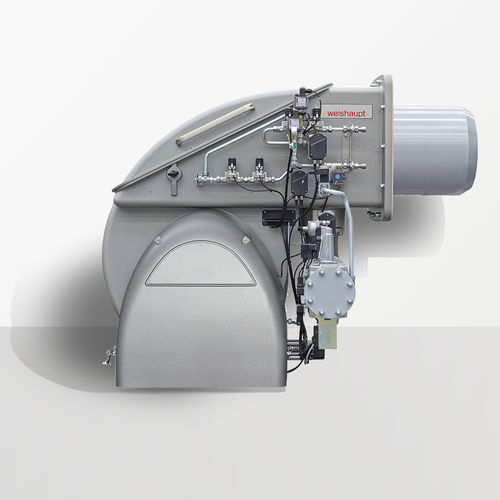

Monobloc burner WKmono 80 series

nozzle mixfuel oildual-fuel

Product information
The Weishaupt WKmono 80 monobloc burners deliver industrial-scale thermal output in a compact monobloc design. Available for gas, oil or dual-fuel operation, units cover ratings up to 17 000 kW while keeping overall length and footprint optimized for boiler and furnace installations.

Benefits

• High capacity in compact form: overall length approx. 1 630 mm with capacity ranges from approx. 1 100–1 300 kW up to 17 000 kW depending on type and execution.
• Integrated digital combustion management: W-FM series controllers (W-FM100/200) supplied as standard or option for economical regulation, stepwise commissioning menus and integration with monitoring or building management systems.
• Service-friendly design: mixing assemblies derived from WK duobloc series are readily accessible, can be moved to service position inside the housing and withdrawn up to 700 mm for maintenance.

Applications

• Liquid fuels: suitable for class D and A2 gas oil per BS 2869 and low-sulphur fuel oil EL per DIN 51603-1; compatible with blended gas oil containing biogenic admixture up to 99.9% and with FAME per EN 14214 and paraffinic oils (EL P).
• Gaseous fuels: designed for natural gas and for hydrogen blends up to 20 vol% in many configurations (subject to individual approval where required).
• Flexible executions and mixing assemblies available to meet specific application, combustion and emission limits.
• Global service network ensures reliable aftermarket support and commissioning assistance.

Technology

• multiflam® technology: patented internal flue gas recirculation concept to cool the flame and reduce NOx formation, applicable for large combustion plants.
• 4LN versions: burners equipped with integrated flue gas recirculation and dedicated control components for stringent emission requirements.
• W-FM100/200 digital combustion managers: burner-mounted or separate versions with integrated connection consoles, bus interfaces and options such as O2-trim probes for optimized combustion and continuous monitoring.
• Gaseous fuels contain negligible sulphur, so flue gases are predominantly CO2, H2O and N2, which reduces contamination risk for FGR systems.

Capacity ranges
Gas burners — 4LN - multiflam FGR
Type | Rating (kW)
WKmono-G80/1 | 1 300 - 13 000
WKmono-G80/2 | 1 600 - 16 000

Gas burners — 3LN - multiflam
Type | Rating (kW)
WKmono-G80/1 | 1 100 - 13 000
WKmono-G80/2 | 1 600 - 17 000

Gas burners — NR
Type | Rating (kW)
WKmono-G80/1 | 1 200 - 13 000
WKmono-G80/2 | 2 200 - 17 000

Gas burners — swirlflame
Type | Rating (kW)
WKmono-G80/2 | 2 200 - 17 000

Oil burners — 3LN - multiflam
Type | Rating (kW)
WKmono-L80/1 | 1 790 - 13 000
WKmono-L80/2 | 2 380 - 16 000

Oil burners — Standard
Type | Rating (kW)
WKmono-L80/1 | 1 750 - 13 000
WKmono-L80/2 | 3 500 - 17 000

Dual-fuel burners — 4LN - multiflam FGR
Type | Rating (kW)
WKmono-GL80/1 | 1 300 - 13 000
WKmono-GL80/2 | 1 600 - 16 000

Dual-fuel burners — 3LN - multiflam
Type | Rating (kW)
WKmono-GL80/1 | 1 200 - 13 000
WKmono-GL80/2 | 1 600 - 16 000

Dual-fuel burners — NR
Type | Rating (kW)
WKmono-GL80/1 | 1 200 - 13 000
WKmono-GL80/2 | 2 200 - 17 000

Technical specifications

• Overall length: approx. 1 630 mm.
• Capacity range: approx. 1 100–1 200 kW up to 17 000 kW depending on type and execution.
• Monobloc design for compact footprint with high thermal output.
• Digital combustion management included or available as W-FM series options.
• Patented multiflam® technology and optional 4LN FGR for low NOx emissions.
• Mixing assemblies: multiple variants, service-withdrawable up to 700 mm; service position within burner housing.
• Compatible fuels: class D/A2 gas oil, low-sulphur EL, blended gas oil with biogenic admixture up to 99.9%, FAME (EN 14214), paraffinic oil (EL P) and hydrogen blends up to 20 vol% in natural gas (subject to approval).
• Available executions and options to meet emission limits and specific plant requirements; many components shared with WK duobloc series.
