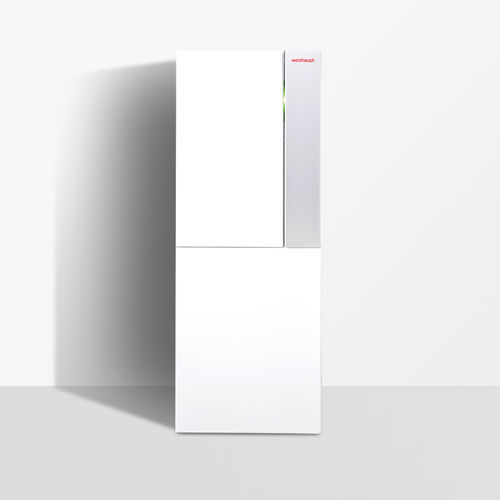

Hot water boiler WTC-GW/GB

gasnatural gashydrogen

Overview
The Weishaupt WTC-GW/GB gas condensing boiler with integrated domestic hot water production combines a condensing boiler and a domestic hot water unit in a single compact assembly to minimize footprint and enable installation in constrained spaces.

Main features

• All-in-one unit combining a condensing boiler and a DHW preheater within a single casing.
• Outstanding insulation of the DHW vessel using full-surface polyurethane foam.
• High-performance aluminium-silicon primary heat exchanger with protective anti-corrosion and anti-fouling coating.
• High measured efficiencies: 110.1% (LHV/PCI) and 99.2% (HHV/PCS) for the presented variants.
• SCOT self-calibrating combustion system providing automatic adaptation to gas quality variations (can accept mixtures containing up to 20% hydrogen by volume with natural gas).
• Reduced electrical consumption thanks to integrated high-efficiency circulators and a 20% reduction in water-side pressure drop across the exchanger.

Variants

• Wall-hung boiler with micro-accumulation: instantaneous DHW via stainless steel plate heat exchanger, draw-off flow up to 14 L/min.
• Compact wall-mounted WTC-GW 25-B (K-35P): modulating output 3–24 kW (up to 29 kW for DHW), stainless steel exchanger, 35 L stainless steel DHW vessel.
• Weishaupt Aqua Power floor-standing compact units (WAS Power): stratified DHW tanks available in 80 and 115 litres.
• Compact floor-standing variant with coil: proven 100 L coil-type vessel, suitable for regions with high water hardness.

Quality and protection

• Inner surfaces of DHW vessels with high-quality enamel coating.
• Anodes (magnesium or active) for additional anti-corrosion protection.
• Design and selected components for extended service life.
• Range of accessories for flue evacuation and control to provide a complete technical solution.

Control and operation

• Intuitive control concept based on a Turn – Press principle for easy navigation and setup.
• Remote control and monitoring possible via the WEM portal and mobile application (smartphone / internet).
• Option: room controller for simple local temperature management and integrated design.

Model table (Min/Max power Qc, Efficiency LHV (PCI), Efficiency HHV (PCS), Heating class, Heating label scale, DHW class, DHW label scale, Dimensions L x D x H, Weight)
WTC-GB 15-B K-100I — 2.0 kW / 14.0 kW — 110.1% (LHV/PCI) — 99.2% (HHV/PCS) — A — A+++ - D — A — A+ - F — 600.0 mm x 600.0 mm x 1,722.0 mm — 139.000 kg
WTC-GB 15-B K-80P — 2.0 kW / 14.0 kW — 110.1% (LHV/PCI) — 99.2% (HHV/PCS) — A — A+++ - D — A — A+ - F — 600.0 mm x 600.0 mm x 1,572.0 mm — 116.000 kg
WTC-GB 15-B K-115P — 2.0 kW / 14.0 kW — 110.1% (LHV/PCI) — 99.2% (HHV/PCS) — A — A+++ - D — A — A+ - F — 600.0 mm x 600.0 mm x 1,722.0 mm — 125.800 kg
WTC-GB 25-B K-100I — 3.0 kW / 24.0 kW — 110.1% (LHV/PCI) — 99.2% (HHV/PCS) — A — A+++ - D — A — A+ - F — 600.0 mm x 600.0 mm x 1,722.0 mm — 144.800 kg
WTC-GB 25-B K-80P — 3.0 kW / 24.0 kW — 110.1% (LHV/PCI) — 99.2% (HHV/PCS) — A — A+++ - D — A — A+ - F — 600.0 mm x 600.0 mm x 1,572.0 mm — 121.800 kg
WTC-GB 25-B K-115P — 3.0 kW / 24.0 kW — 110.1% (LHV/PCI) — 99.2% (HHV/PCS) — A — A+++ - D — A — A+ - F — 600.0 mm x 600.0 mm x 1,722.0 mm — 131.600 kg
WTC-GW 25-B K-35P — 3.0 kW / 24.0 kW — 110.1% (LHV/PCI) — 99.2% (HHV/PCS) — A — A+++ - D — A — A+ - F — 520.0 mm x 575.0 mm x 1,042.0 mm — 76.200 kg
WTC GW 25 -B C — 3.0 kW / 24.0 kW — 110.1% (LHV/PCI) — 99.2% (HHV/PCS) — A — A+++ - D — A — A+ - F — 520.0 mm x 335.0 mm x 792.0 mm — 49.000 kg

Technical characteristics / specifications

• Integrated combination of condensing boiler and DHW vessel within the product casing.
• Primary heat exchanger in aluminium-silicon with protective coating (limits fouling and corrosion).
• Usable with gas mixtures containing up to 20% hydrogen by volume (automatic adaptation via SCOT).
• DHW vessel insulated with polyurethane foam to minimize thermal losses.
• Integrated high-efficiency circulators to reduce electrical consumption; 20% reduction of water-side pressure drop in the exchanger.
• DHW production options: micro-accumulation (stainless steel plate exchanger, up to 14 L/min), 35 L stainless steel wall-mounted vessels, stratified 80/115 L floor-standing vessels, 100 L coil-type floor-standing vessels.
• Wide range of variants and accessories for flue systems and control to suit installation constraints.
