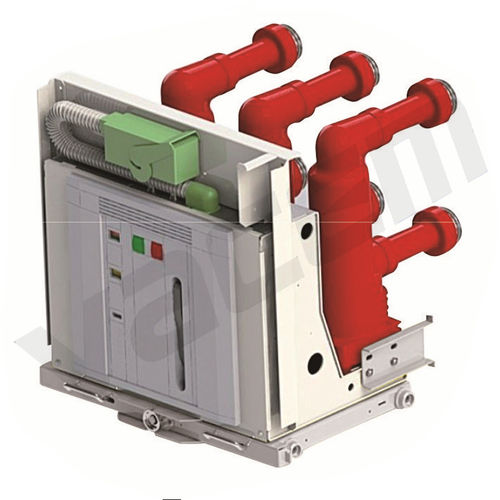

Vacuum circuit breaker VAC83
three-phaseAChigh-voltage

vacuum circuit breaker
vacuum circuit breaker
vacuum circuit breaker
Add to favorites
Compare this product


Characteristics

Type
vacuum
Electrical characteristics
three-phase, AC, high-voltage
Operating mode
modular
Applications
motor protection, for transformers
Number of poles
3-pole
Other characteristics
compact, indoor
Primary current

Min.: 630 A

Max.: 4,000 A

VAC

12 kV

Description

VAC83 VCB is in a new type indoor switch device, which is mainly used in three-phase AC power system with rated voltage of 12kV, and rated frequency of 50-60Hz. It has the advantages of compact structure, high reliability, small operation vibration and easy maintenance. It can be widely used in power plant, steel plant, metallurgy, petrochemical, transportation, building and other industrial and mining enterprises as a switch device for protection of high voltage motors, transformers, line faults and other loads. Product characteristics Taking different functional units as the dividing line to realize the full modular design. The integrated and optimized design minimizes the intermediate realization link of the functional unit,and the overall mechanism only has more than 70 parts. There is no adjustment link in the mechanism to minimize the professional requirements for maintenance personnel. The whole series of products are easy to operate. Small mechanical operation vibration. Mechanism with manual energy storage handle. Fast replacement of wearing parts without special tools. The whole series of mechanisms have passed the verification of 72 hour salt spray test. Simple and reliable structure Less closing interlocking parts, convenient integrated installation,effective prevention of false closing. The opening adopts friction type structure, with small wear and failure rate, so as to improve mechanical life.
