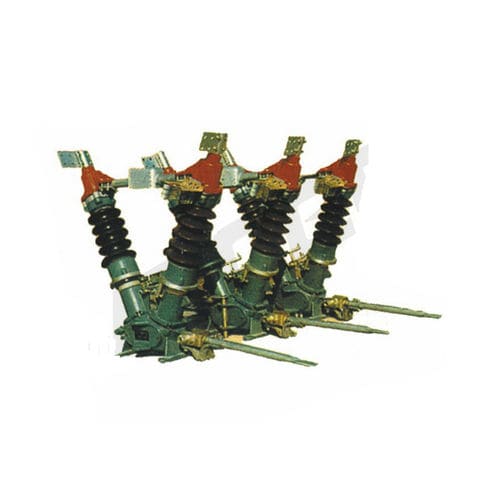

GW5 outdoor disconnect switch is an outdoor H.V. circuit electric appliance in AC 50Hz, rated voltage 40.5kV, 72.5kV and 126kV. It can be used for H.V. circuit making under no-load condition and electric-disconnecting in inspection of H.V. generatrix, appliances as circuit breaker and live H.V. wire. Also, it can be used to make small capacitance of inductive current. 2.Structure characteristics Each unipolar equipment is firmed in a base with two post insulators, shaping a V with intersection 50.The main structures as below: base, post insulator. terminal base,contact, earthing switch, earthing static contact and cable terminal. This switch is sorted by earthing-free, single earthing and double earthing. There is a mechanical interlocking between main principal axis and earthing switch. It is equipped with an auxiliary switch.It has manual and automatical operation ways. 3.Features a.Making current freely. Turning flexibility due to rolling bearing, which leading to operational labor saving. b.It is transmitted by level gear to make the two pillars making current consistently. c.The opening and closing brake has limited switch to ensure the contactors at the best position.Meanwhile, the handle will be buckled by lock ring after operation. d.Big clearance between open contacts, sufficient insulating and disconnecting fracture to ensure the operation safety. e.It has earthing-free, single earthing and double earthing. There is a reliable mechanical inter locking between principal axis and earthing to ensure safety. Users can choose the earthing way accordingly.
