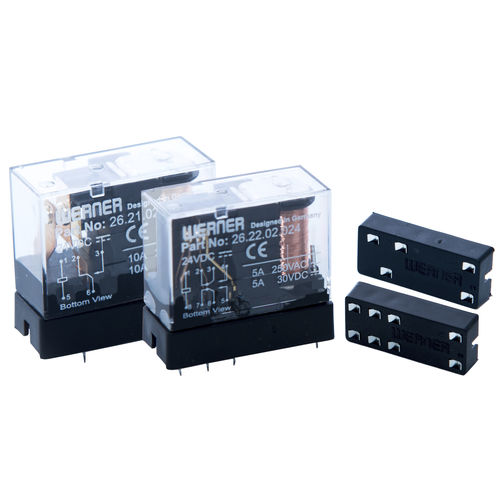

WERNER`s 26 Series PC Board Relays are the product of your choice if your designs require SPDT or even
DPDT abilities but board space and available heights in your casings is very limited. Like our 24 Series, the 25
Series products are fully sealed for use in harsh surroundings, whilst the 26 series products are not sealed but
therefore your right choice when purchase price is the major issue.
Features Overview
- All models available for direct PC Board Mounting, PCB socket or Panel socket mounting
- All models designed applying MFMS design principles (Max Function Min Space)
- All models designed applying solid modeling and finite elements design methods
- 26 Series available as SPDT, DPDT, SPST-NO as well as DPST-NO
- All models available for use with 50 Hz and 60 Hz cycles
Highlights
- 26 Series unsealed but cheaper by providing a heights of only 25mm
- All models available in standard current ratings from 6V to 48V (DC)
- Available in SPST with up to 12 Ampere Continuous Load Current
- Available in SPDT with up to 8 Ampere Continuous Load Current
- All models provide Dielectric strength of 5.000V (AC)
26 Series PC Board Relays by WERNER offer you just the right products for those circuits where spaces is
ever precious, but the large number of sets needed weigh out a little larger use of panel space against
mentionable savings in the purchase invoice of the needed quantities.
