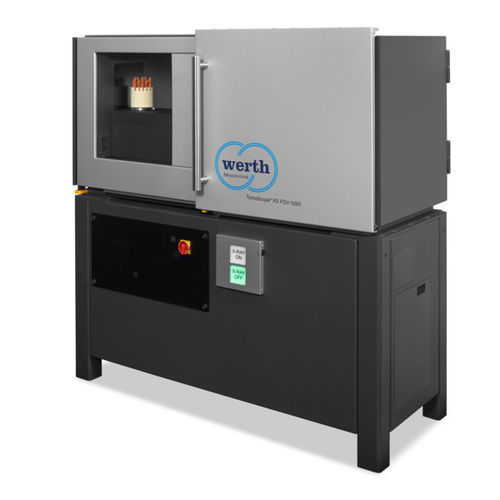

Gooseneck coordinate measuring machine TomoScope® XS FOV 500

for small partsfor lensehigh-precision

Measurements with X-ray tomography in the detector's field of view for shopfloor and measuring room The TomoScope® XS FOV is a flexible and easy-to-use machine for fast measurements with industrial computed tomography. The 3D measurements take place in the detector's field of view without moving axes and can be fully automated. A high-performance X-ray tube optimises the measuring time, especially when using beam hardening filters. Several small workpieces such as lids or dowels can be measured together using suitable fixtures. The measurement of small metal parts such as dental implants, light metal workpieces or door hinges is also possible. • Also suitable for inline applications • High availability due to maintenance-free tube in monoblock design • 24 months warranty without shift limitation on the tube • High-precision air bearing rotary axis for low measurement uncertainty • Low space requirement due to compact design • Due to its low weight, it can be set up almost anywhere • Rapid amortization due to low acquisition costs • OnTheFly Tomography scan and reconstruction in real time enable fast measurements • Standard-compliant calibration according to VDI 2617 for reliable and traceable measurement results, optionally with DAkkS certificate Max. Workpiece dimensions D = 280 mm / L=112 mm (depending on the aspect ratio of the workpieces) Accuracy Permissible length measurement error up to 5 µm
