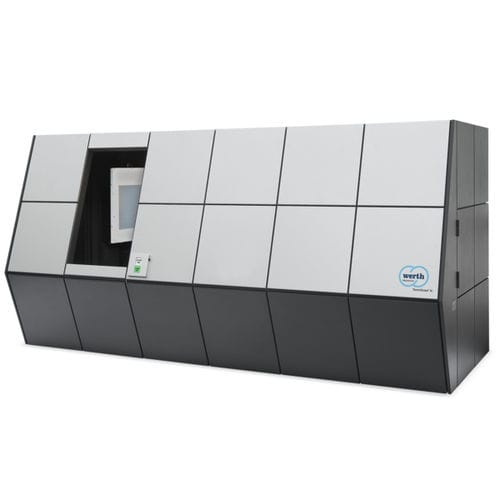

Large part coordinate measuring machine TomoScope® XL

for gearsfor lensesmulti-sensor

The TomoScope® XL can also be used for measurement and inspection tasks on massive, large workpieces. To extend the range of applications, a second X-ray source can be used in automatic changeover in this multi-sensor coordinate measuring machine with X-ray tomography, for example, to additionally measure small components with the highest resolution. Areas of application are workpieces with high density (aluminum, steel, titanium, elastomers, hybrid plastics, 2K, ceramics, multi-materials (e.g. connectors), assemblies, glass fibre reinforced plastics). • Large distance between X-ray tube and detector for precise measurement with small cone angles • Optical workpiece positioning aid for easy positioning of the measuring objects • Due to the accuracies achievable with the patented subvoxeling method and the high density of measuring points, this technology is also ideally suited for the correction of tools used in injection moulding • The design and construction of all TomoScope® machines correspond to full protection devices according to the Radiation Protection Ordinance • A workpiece changing system can be integrated into the machine housing and the computed tomography coordinate measuring machine can also be used continuously and automatically overnight and at weekends • Highly accurate 3D measurements, even in production or incoming goods, thanks to optional active unit air-conditioning • Standard-compliant calibration according to VDI 2617 for reliable and traceable measurement results, optionally with DAkkS certificate Measuring range Max. Workpiece dimensions D = 530 mm / L = 725 mm (depending on the aspect ratio of the workpieces)
