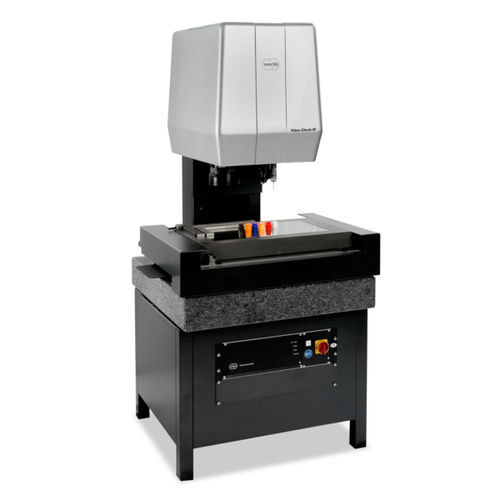

Constant-tension guideways for highest accuracy and long-term stability for shopfloor and measuring room
The preload of the guideways in X and Y is generated by magnetic force and gravity. This avoids expansion-related changes in tension and at the same time reduces friction and backlash, resulting in very high long-term stability. Areas of application are, for example, in tool and machine construction, the automotive, electrical, medical, plastics, rubber or glass industries.
• Due to the low length measurement errors the machine is predestined for multi-sensor systems
• Roughness and contour measurements can be automated with the patented micro-probe Werth Fiber Probe® or the Werth Contour Probe
• A high degree of flexibility is achieved through the use of rotary/tilt heads, changing racks or even workpiece rotary or rotary/tilt axes
• The graphical user interface of the WinWerth® measurement software allows efficient and simple operation
Accuracy
Permissible length measurement error up to 1.1 µm
• ABS blocks
• Furniture fittings
• Turned parts
• Labels
• Springs
• Flat gaskets
• Bottles
• Form turning tools
• Tap
• Glass standards
• Inhalers
• Hypodermic needles
• Bone cutter
• Bone screws
