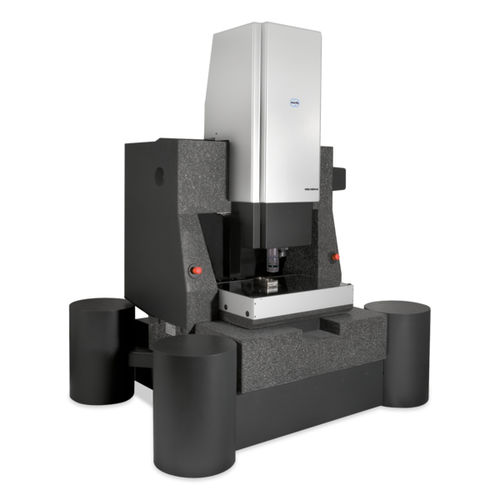

Bridge coordinate measuring machine VideoCheck® UA

gantryfor small partsfor gears

Perfectly integrated multi-sensor systems for laboratory applications Thanks to special air bearing technology, integrated vibration insulation, temperature-stable scale and drive systems and a high-performance control system, the achievable length measurement errors of the highly accurate (ultra accuracy) multi-sensor coordinate measuring machine are in the range of a few tenths of a µm. The main applications are precision workpieces and 3D micro-geometries. • Accuracy-optimised, solid granite construction with fixed bridge • Measuring volume of 400 mm x 400 mm x 250 mm unique in this machine class • Highly accurate optical measurement with telecentric precision optics and powerful contour image processing • Integration of additional highly accurate sensors such as the patented tactile-optical micro-probe Werth Fiber Probe® or the Chromatic Focus Point sensor • Highly accurate measurement in the Z-axis due to fast contrast autofocus Accuracy Permissible length measurement error up to 0.15 µm • Turned parts • Springs • Contact lenses and molds • Plastic optics • LED arrays • Mirrors / Optical filters • Spinnerets • Plug connections • Ring and bevel gears • Deep drawing and punching tools • Wafer
