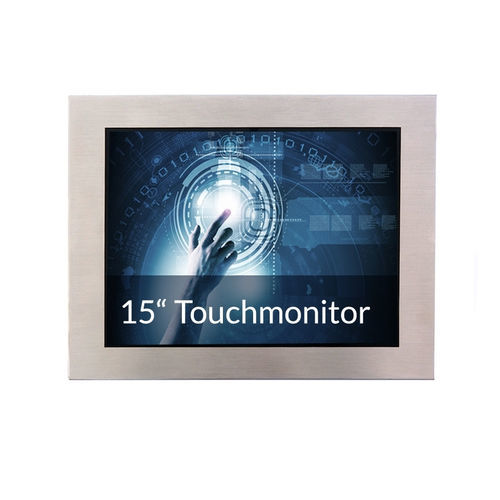

TFT-LCD monitor IP65-15T-PCAP

PCAP capacitive touch screenmultitouch screenLED backlight

The LED backlight technology of the 15'' touchscreen impresses with bright image reproduction and low power consumption. Equipped with projected capacitive (PCAP) touch technology, the touch monitor supports operation with up to 10 fingers simultaneously, providing a user experience similar to that of a tablet or smartphone. The IP65 dust- and waterproof industrial housing is ideal for use in areas that are dusty, humid, wet, or require daily cleaning (e.g., the food industry). The enclosure offers not only effective and long-term protection against dust and water, but also against dirt and corrosive substances. The stainless steel has antibacterial properties and a very high resistance to corrosion. Features Robust stainless steel housing Modular design: The mechanical construction allows flexible product configuration for specific HMI requirements and easy maintenance CE, FCC, RoHS compliance Technical Data Housing – Stainless steel Aspect ratio – 4:3 Max. colors – 16.2 million Viewing angle – Horizontal: 80°/80°, Vertical: 60°/80° Contrast – 700:1 Temperature range – -10°C to +60°C (50°C normal, 60°C at very low humidity) Active area – 304.128 mm (W) × 228.096 mm (H) Dimensions – 393.40 mm (W) × 310.40 mm (H) × 64 mm (D) Power consumption – 18W Includes external 12V DC power supply with waterproof power cable
