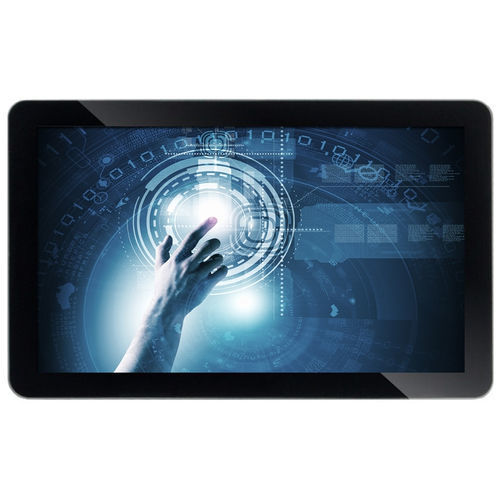

TFT LCD panel PC PPC15.6IDHPC-I3

LED backlightPCAP capacitive touch screenmultitouch screen

The robust steel housing with aluminum frame and a high-strength glass front provides the durability required for demanding industrial environments. The panel PC is IP65 sealed on the front side. The LED backlight technology of the 15.6'' touchscreen delivers bright image reproduction with low power consumption. Equipped with projected capacitive (PCAP) touch technology, the touch monitor supports operation with up to 10 fingers simultaneously. The flat and scratch-resistant surface is easy to clean. The panel PC is equipped with the powerful Intel® Core i3 processor. Special Features Steel housing and aluminum frame for rugged industrial environments Easy-to-clean, flat front surface without bezel CE, FCC, RoHS compliance Technical Data MONITOR: Aspect Ratio - 16:9 Max. Colors - 262k Display Brightness - 300 cd/m² Viewing Angle - Horizontal: 89°/89°, Vertical: 89°/89° Contrast - 700:1 Active Display Area - 344.16 mm (W) × 193.59 mm (H) Dimensions - 394.00 mm (W) × 241.00 mm (H) × 34.8 mm (D) Input Port - Power: DC 12 V Power Consumption - 45W PC: Graphics - Intel HD Graphics (via CPU) Network - 1x10/100/1000Mbps Ethernet Includes external 12V DC power supply with power cable
