LCD monitor TIC21.5ITH-HB-1500CDPCAP capacitive touch screenLED backlightindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, PCAP capacitive touch screen, LED backlight
- Applications
- industrial, outdoor
- Display size
- 21.5"
- Resolution
- 1920 x 1080
- Mounting
- VESA mounting, open-frame
- Other characteristics
- HDMI, VGA, high-brightness
- Operating temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description

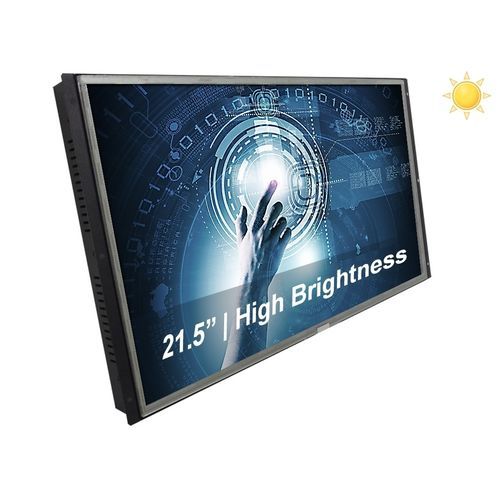

55 cm / 21.5" Open Frame High Brightness (Sunlight-Readable) LCD Monitor
For installation behind a touch or protective glass, chassis version without protective glass.
Advantages
Designed for harsh and industrial environments
High brightness of 1500 nits, sunlight-readable
Without protective glass, suitable for installation behind a touch or protective glass
Applications
Ideal for integration into outdoor terminals behind protective glass.
LCD Panel
Active display area (mm): 476.64 (H) × 248.25 (V)
Aspect ratio: 16:9
Colors: 16.7M
Brightness (cd/m²): 1500 cd/m²
Contrast ratio: 1000:1
Viewing angle: 89/89/89/89
Audio / Power
Audio: 1 × PC audio
Power connector: 1 × DC 2.0, includes external power supply 12V DC / 100–240V AC
Operation
Operating temperature range: 0 to +50°C
Humidity range (RH): 10–90%
24/7/365 operation: supported
Power
Power input: DC 12V
Power consumption: 28W
