LCD monitor TIC15.0ITX-HB-1500CDLED backlightindustrialoutdoor
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, LED backlight
- Applications
- industrial, outdoor
- Display size
- 15"
- Resolution
- 1024 x 768
- Mounting
- VESA mounting, open-frame
- Other characteristics
- HDMI, VGA, high-brightness, sunlight-readable
- Operating temperature
Max.: 50 °C
(122 °F)Min.: -10 °C
(14 °F)
Description

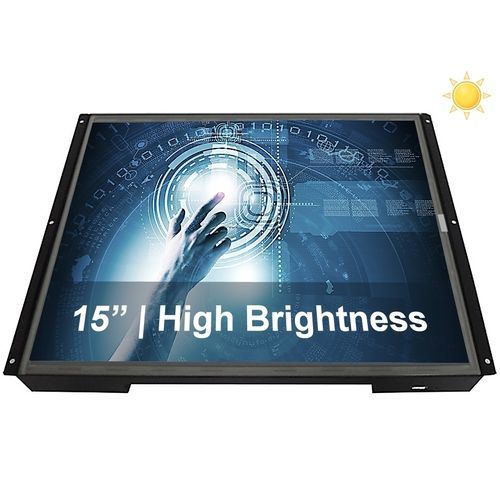

38 cm / 15" Open Frame High Brightness (Sunlight-Readable) LCD Monitor
For installation behind a touch or protective glass, chassis version without protective glass.
Advantages
Designed for harsh and industrial environments
High brightness of 1500 nits, sunlight-readable
Without protective glass, suitable for installation behind a touch or protective glass
LCD Panel
Active display area (mm): 304.13 (H) × 228.10 (V)
Aspect ratio: 4:3
Colors: 16.7M
Brightness (cd/m²): 1500 cd/m²
Contrast ratio: 800:1
Viewing angle: 85/85/85/85
Audio / Power
Audio: 1 × PC audio
Power connector: 1 × DC 2.0
Operation
Operating temperature range: -10 to +50°C (up to 60°C at very low humidity)
Humidity range (RH): 10–90%
24/7/365 operation: supported
Power
Power indicator: green LED
Power input: DC 12V
Power consumption: 20W
