liquid pressure switch / capsule / OEM / stainless steel
P117G

{{requestButtons}}

Characteristics

  • Fluid:

    for liquids

  • Technology:

    capsule

  • Applications:

    OEM

  • Other characteristics:

    stainless steel, miniature

  • Process temperature:

    Min.: -65 °F (-54 °C)

    Max.: 225 °F (107 °C)

  • Pressure range:

    Min.: 0.8 psi

    Max.: 500 psi

Description

Overview:

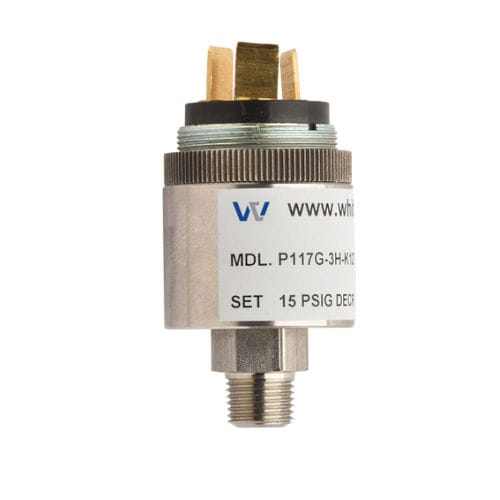

The Whitman Controls P117G Stainless Steel Miniature Pressure switches are sharp, highly-versatile devices that can be used in hundreds of OEM and routine mechanical applications. There are numerous fitting and electrical connection options available featuring TB (shown),
Military and DIN Connectors.
Key Features:
• Miniature size
• Stainless steel body
• Set point options: Factory set, field adjustable, or a combination
• Extensive operating temperature range
• Wide range of electrical interfaces available
• SPDT or SPST availability
Specifications:
• Set point range: 0.80 to 500 PSIG
• Max System pressure: 150% of
sensor capacity
• Temperature range: -65oF to +225oF (-54oC to +107oC)
• Amps: 5 Amps Max
• Sensor Element: Capsule
• Weight: 3oz (varies slightly with electrical interface selection)
• Cycling: 3H/5H – Not to exceed 60 CPM, 10H/25H/50H – Not to exceed
20 CPM
• Wetted Parts:
Capsule: 17-7 PH
Seal: Loctite #271
Fitting: 303 Stainless steel
Standard Thread: ⅛-27 NPT male
Optional Threads: ¼-18 NPT male 7/16-20 UNF male
