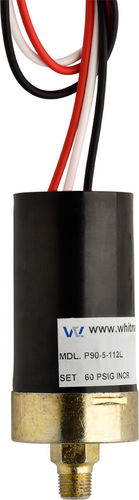

water pressure switch / diaphragm
P90

Add to MyDirectIndustry favorites
water pressure switch / diaphragm water pressure switch / diaphragm - P90
{{requestButtons}}

Characteristics

  • Fluid:

    for water

  • Technology:

    diaphragm

  • Process temperature:

    Max.: 257 °F (125 °C)

    Min.: -40 °F (-40 °C)

  • Pressure range:

    Max.: 1,000 psi

    Min.: 0.75 psi

Description

The Whitman Controls P90 Severe Environment Pressure switches are built to operate in harsh conditions and are typically used in vehicle applications both off road and on. As these switches are NEMA 6 rated, they are weather proof and briefly submersible. Ideal use is on log skidders, tracctors, handi-vans, cranes and numerous other applications where shock, vibration and weather are of primary concern.
Key Features:
• Shock resistant up to 150G
• Vibration durability of 10Hz to 2,000Hz @ 10G’s
• Water resistant up to 1,000 PSIG high pressure spray
• Cold Storage up to -67oF (-55oF)
• NEMA 6 Rated: Weather-proof and briefly submersible
• Set point options: Factory set
to customer specification,
non-adjustable
• Extensive operating temperature range
• Wide range of electrical interfaces available
•SPDT or SPST availability
Specifications:
• Set point range: 0.75 to 400 PSIG
• Max System pressure: 600 PSIG
• Temperature range: -40oF to +257oF (-40oC to +125oC)
• Amps: 1-11 Amps Max
• Sensor Element: Diaphragm
• Weight: 7oz (varies slightly with
electrical interface selection)
• Cycling: Not to exceed 20 CPM
• Wetted Parts:
Diaphragm: Viton
Lower Body: Zinc alloy, chromate
finish
Standard Thread: ⅛” NPT
Optional Threads: 12-20 SAE, other fittings available in quantities
