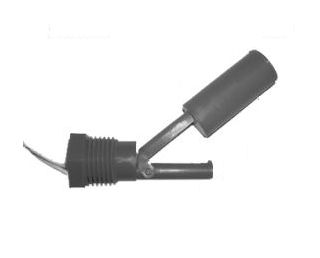

Broken finger float level switch L22-16-S1-16-NO
for waterplasticside-mount

broken finger float level switch
broken finger float level switch
Add to favorites
Compare this product


broken finger float
for water
Other characteristics
plastic, side-mount
Process pressure

Min.: 0 psi

Max.: 100 psi

Process temperature

Min.: -40 °F (-40 °C)

Max.: 180 °F (82 °C)


The Whitman Controls L22 Series Single-Ended Side Mount CPVC Plastic Liquid Level Switches are typically used in water and potable water applications. The side mount provides added versatility, allowing the switch to be used as a high or low level indicator, and plastic body provides use up to 100 PSI. These are most often used in many O.E.M. and one-off applications. These are available with several options as specified by the user. Key Features: Whitman Red Seal potting submersible to a NEMA 6 rating CPVC Plastic Side mounted Extensive operating temperature range SPST availability Specifications: Fitting: 1/2" NPT Wetted Materials: CPVC Plastic Minimum Liquid Specific Gravity: 0.90 Liquid Temperature range: -40℉ to +180℉ Max System Pressure: 100 PSIG Electrical Switch Rating: 50 VA Weight: 5oz (approx.)
