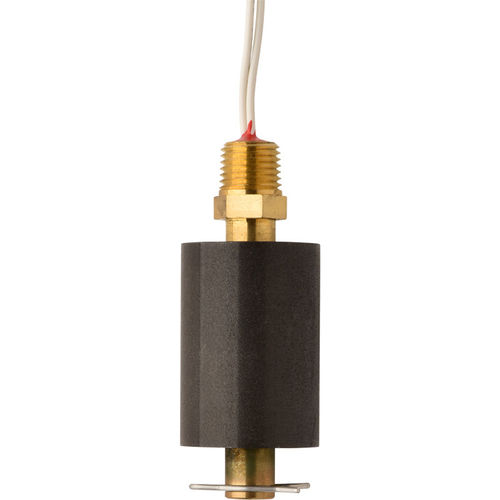

Float level switch L60-06-C3-15-NO
for oilfor fuelbrass

Add to favorites

Compare this product

Go to the Whitman Controls Corporation website for more information

Characteristics

Technology

float

Medium

for oil, for fuel

Material

brass, stainless steel

Mounting

vertical

Other characteristics

high-temperature

Process temperature

Max.: 180 °F
(82 °C)

Min.: -40 °F
(-40 °C)

Process pressure

Max.: 160 psi

Min.: 0 psi

Description

The Whitman Controls L60 / L65 Series Vertical Mount Brass Buna Liquid Level Switches are constructed with a brass stem and buna float, which allows these switches to operate in harsh, high temperature environments relative to its stainless steel cousin. The unit is rated to 230°F /110℃ in oil. The L60 / L65 is commonly used in oil, gasoline, hydraulic oil, and jet fuel applications, and can survive up to 230°F in oil. Key Features: Brass stem and buna float Whitman Red Seal potting submersible to a NEMA VI rating Extensive operating temperature range SPST availability Specifications: Wetted Materials: Brass stem, Buna float, 316 Stainless Steel Minimum Liquid Specific Gravity: 0.70 Liquid Temperature range: -40℉ to +180℉ (230℉ / 110℃ in oil) Max System Pressure: 160 PSIG Electrical Switch Rating: 50 VA Weight: 3oz (approx.)

Catalogs

No catalogs are available for this product.

See all of Whitman Controls Corporation‘s catalogs

Go to the Whitman Controls Corporation website for more information
