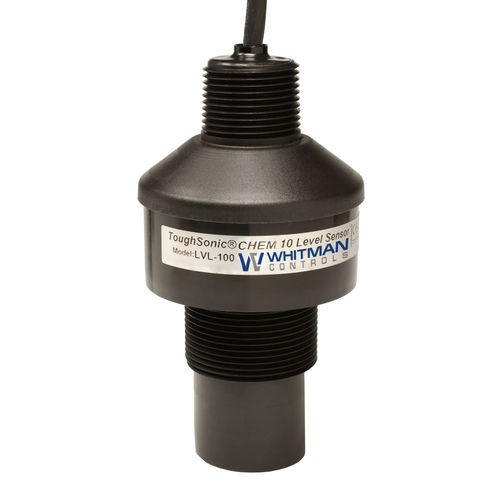

Ultrasonic level sensor ToughSonic Chem 10
for fuelfuel tankcompact

ultrasonic level sensor
ultrasonic level sensor
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Medium
for fuel
Applications
fuel tank
Other characteristics
compact, rugged, chemical-resistant
Level range

Min.: 0 m (0'00")

Max.: 3 m (9'10")

Description

The Toughsonic Chem Ultrasonic Sensors are the more rugged version of the Toughsonic General purpose line, suitable for use in diesel fuels and chemical level applications in closed or open tanks. These durable, compact ultrasonic level sensors measure a wide variety of liquids from diesel fuel in rail locomotives to chemcial tanks in the paper and food processing industries. The Toughsonic Chem 10 sensor provides non-contact measurements at distances up to 10 feet (3m), with an optimum range of 4 to 80 inches (100mm to 2m). Heavy duty electronics are epoxy potted into a polyvinylidene fluroride (PVDF) housing that physically isolates the transducer and electronics from chemicals and can withstand exposure to both acids and bases. The Chem sensors are used both indoors and out, and in some of the harshest factory environments. They are also suitable in liquid level applications where chemical resistance is not a neccesity. Maximum Range: 10 feet (3m) Optimum Range: 4" inches - 80 inches (100mm to 2m) Housing: Injection molded, chemically resistant Polyvinylidene fluoride (PVDF) Mounting: Top mount: 1" NPT, Bottom mount: 1.5" Straight thread (fits NPT or BSP) Outputs: 2+ serial data Operating Temperature: -40 to +158°F (-40 to +70°C) WhitmanVIEW PC Software is included at no extra charge, runs on a windows PC and connects to sensors via a serial data port. Our Setup Kits provide everything needed to connect through a USB port, including power supply, sensor-PC interface and cables. SenixVIEW is not required but adds powerful configuration, test and management capability. For more information, visit our technical resources page.
