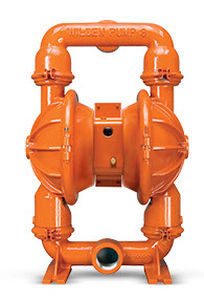

Diaphragm pump PS8for food productsindustrialsuction
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for food products
- Domain
- industrial
- Applications
- suction
- Material
- metal
Description
WETTED HOUSINGS
(Water Chambers and Manifolds)
Material Ship Wt
Aluminum 35 kg (78 lbs)
Cast Iron 49 kg (109 lbs)
Stainless Steel 53 kg (117 lbs)
NON-WETTED HOUSINGS
Description Material
Center Section Aluminum
Air Valve Aluminum
FLOW RATE TO 723 LPM (191 GPM)
MAX PRESSURE = 8.6 BAR (125 PSI)
MAXIMUM SUCTION LIFT CAPABILITY
7.2 m (23.8’) Dry, 9.0 m (29.5’) Wet
MAXIMUM DIAMETER SOLIDS
6.4 mm (1/4”)
