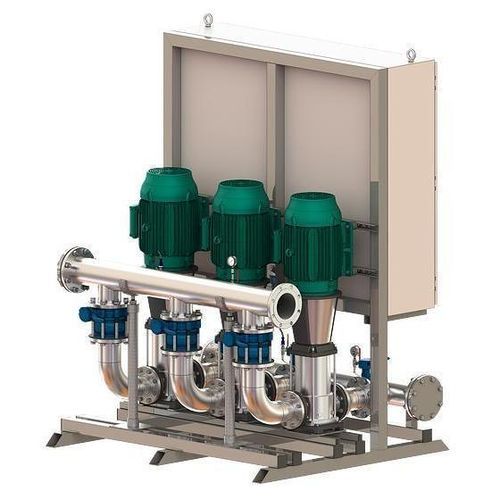

Centrifugal pressure booster CO MVI series

waterCO2electric power

Overview

• 1/3HP-100HP per pump (up to four pumps in parallel)
• Strong base support with close-fitting profile to maneuver through doorways
• Smaller footprint allows for installations into tight areas
• NSF/ANSI 61 & 372 certified systems, 304 stainless steel construction
• Full system kWH energy reporting
• Real-time diagnostics and remote monitoring
• Onboard ModBUS and optional BACnet & LonWorks interface
• Variable speed control per pump
• Adjustable low-pressure cut-out
• Balanced run time across all pumps

Series description

• Design: 2-4 Pump Pressure-Boosting Systems
• Max. Flow: 3,160 GPM
• Max. Head: 989 feet
• Equipment / function: 1/3HP-100HP per pump (up to four pumps in parallel); strong base support; reduced footprint for tight installations; energy reporting and remote diagnostics; onboard communication protocols; variable speed control; adjustable low-pressure cut-out; balanced run time

Type key (extract)
Example: Wilo CO2 MVI-1SB-225-3/2-20HP-304E-230V~3
Wilo : Brand Name
CO : Product Family – Pressure Booster Systems (1 VFD Per Pump)
2 : Number of Pumps
MVI : Series designation of pumps
1SB : Reduced Manifold (1 Standby Pump Required)
225 : Nominal Flow Rate in US Gallons per Minute
-3 : Number of Stages (Impellers in Series)
/2 : Number of Trimmed Impellers
20HP : Horsepower
304 : Stainless Steel Type
E : EPDM Elastomers
230V : Voltage
~3 : Phase

Caractéristiques / spécifications techniques

• Fluid temperature range: -4°F to 248°F (-20°C to 120°C) with a minimum of 32°F for domestic water
• Electrical connections: 1~IN 3~208-230 OUT / 3~208-230 / 460 / 575 V (various configurations depending on unit)
• Rated pressure: 232 / 363 / 435 PSI (depending on configuration)
• Flange connections: Class 150 or Class 300 flanges depending on booster working pressure
• Motors: TEFC motors standard
• Construction: All 304 stainless steel construction for wetted components (NSF/ANSI 61 certified systems)
• Elastomers: EPDM and FKM options
• Mechanical seal options: Tungsten carbide / EPDM; optional Viton® (FKM)
• Control & communication: Variable speed per pump, onboard ModBUS, optional BACnet and LonWorks, real-time diagnostics and remote monitoring, full system kWh energy reporting
• Operational features: Adjustable low-pressure cut-out, balanced run-time across pumps
