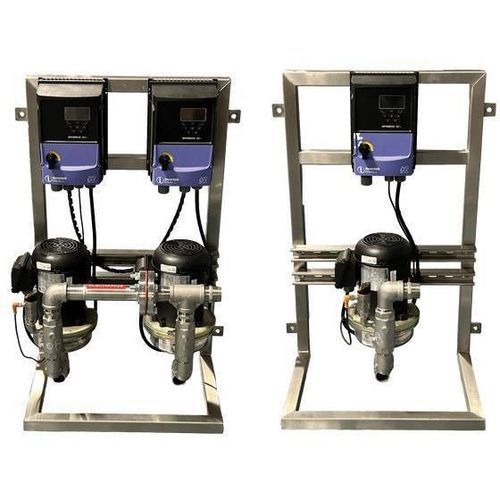

Centrifugal pressure booster MicroFlo series

waterelectric powerdigital

Overview

• Plug & Play Ready Solution requiring minimal engineering
• Highly compact, 1 or 2 pump booster for low flow - low boost applications
• 304 Stainless Steel pumps & fittings
• Voltages: 230/1, 208/3, 460/3, 575/3
• Variable Frequency Drives & Master Power Switch included standard
• IP66 Rated VFDs & TEFC Motors for indoor/outdoor locations
• Multi-functional Digital Pressure Sensor with pipe break feature
• Non-Slam (Silent) Operation resilient seated check valve
• Compact Front-Side Access accommodates wall or floor anchoring
• Simplex & Duplex Vertical Mounted Pumps for easy seal maintenance
• Simple System Connections: 1.25” NPT
• 1 Year Warranty

Application

• Strip Malls/Restaurants
• Multi-Family Housing
• Small Office Buildings
• Truck Stops/Car Washes

Equipment / Function

• Plug & Play Ready Solution requiring minimal engineering
• 1 or 2 pump booster (simplex or duplex) for low flow / low boost
• 304 Stainless Steel pumps and fittings
• Variable Frequency Drives (VFDs) and Master Power Switch included
• IP66 rated VFDs; TEFC motors for indoor/outdoor use
• Multi-functional digital pressure sensor with pipe-break detection
• Resilient-seated non-slam (silent) check valve
• Compact front-side access for installation and maintenance
• Simple system connections: 1.25" NPT
• 1 year warranty

Type key
Example: MicroFlo Duplex 1.5-5.00-460V~3
MicroFlo — Series
Duplex — Number of Pumps (2)
1.5 — Horsepower
5.00 — Impeller Trim (in.)
460V — Voltage
~3 — Number of Phases

Notes

• Series product page: multiple unit configurations and article numbers available (24 results listed)

caractéristiques / spécifications techniques

• Materials: 304 stainless steel pumps and fittings
• Available voltages: 230 V single-phase; 208 V / 460 V / 575 V three-phase
• VFDs included as standard; IP66 rated for harsh environments
• Motors: TEFC (Totally Enclosed Fan Cooled) suitable for indoor/outdoor
• Control: Variable Frequency Drive with master power switch and multi-functional digital pressure sensor (pipe break feature)
• Hydraulics: Simplex and Duplex vertical-mounted pump arrangements
• Check valve: resilient seated, non-slam (silent) operation
• System connections: 1.25" NPT
• Access: compact front-side access for wall or floor anchoring and maintenance
• Warranty: 1 year
• Product range: multiple article numbers/configurations (24 variants listed on series page)
