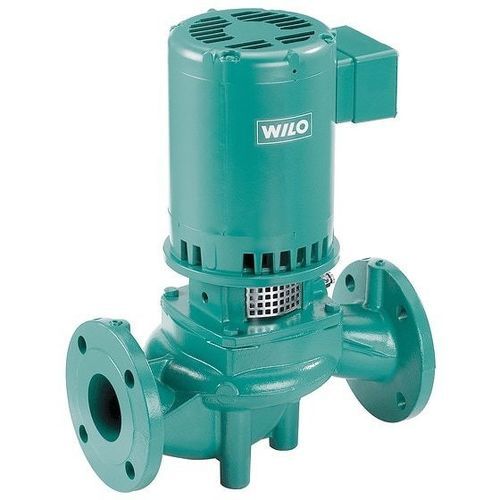

Centrifugal pump VeroLine-IPL

waterwith electric motorstationary

Overview
Single-stage, flanged inline centrifugal pump series VeroLine-IPL. Long-coupled dry-rotor design with mechanical seal, available in flange sizes from 1.5" to 3" and motor configurations for 2- and 4-pole operation. Typical duty includes HVAC, industrial circulation and closed cooling circuits. Max. flow: 400 GPM; Max. head: 65 ft.

Main features

• Integrated suction straightening vane (on larger sizes)
• Pump feet drilled and tapped for easy installation
• ANSI Class 125 raised-face flanges (250# optional)
• Suction and discharge 1/4" pressure gauge tappings
• Lifting eyes for handling

Product selection (extract)
Product description | Poles | Nominal flange | Shaft seal type | L0 | Rated power P2 | Article number
IPL 1.5 16/80-4 1-115/230V | 4 | 1.5" ANSI Class 125 | Q1Q1X4GG | 12.99 in | 0.33 hp | 2705365
IPL 2 18/125-4 1-115/230V | 4 | 2" ANSI Class 125 | Q1Q1X4GG | 14.02 in | 0.50 hp | 2705369
IPL 2.5 23/240-4 1-115/230V | 4 | 2.5" ANSI Class 125 | Q1Q1X4GG | 13.50 in | 1.00 hp | 2705375
IPL 2.5 50/260-2 1-115/230V | 2 | 2.5" ANSI Class 125 | Q1Q1X4GG | 13.50 in | 2.00 hp | 2705042
IPL 3 20/300-4 1-115/230V | 4 | 3" ANSI Class 125 | Q1Q1X4GG | 15.00 in | 1.00 hp | 2705381
IPL 3 56/400-2 3-208-230/460V | 2 | 3" ANSI Class 125 | Q1Q1X4GG | 14.02 in | 3.00 hp | 2705047

Design
Single-stage inline, flanged, long-coupled pump with mechanical seal and dry rotor option for motor-driven applications.

Application

• Hot water heating systems
• Air conditioning and chilled-water systems
• Closed cooling circuits
• Industrial circulation
• Solar and geothermal circuits

Equipment / function

• Coupled to motor via one-piece coupling
• Standard NEMA frame Baldor motor options
• Gauge tappings and lifting points as standard

Type key
Example: IPL 1.25-21/50-2 = IPL (Inline flanged pump) | 1.25 = pipe connection in inches | 21 = max head in feet | 50 = max capacity in US gpm | 2 = number of poles (4 = 1750 rpm, 2 = 3500 rpm)

Technical data

• TEFC motors standard (ODP available)
• Fluid temperature range: -10°C to 120°C (15°F to 250°F)
• Max. ambient temperature: 40°C (104°F)
• Electrical options: 1~ 115/230 V; 3~ 208-230/460/575 V
• Flange connection: 1½" to 3" with 1/4" pressure gauge tappings
• Max. working pressure: typically 10 bar (145 PSI), check model data

Materials

• Cast iron volute with cataphoretic coating
• Engineered composite impeller
• Stainless steel stub shaft
• 2-part epoxy paint finish

Construction

• Single-stage low-pressure centrifugal inline design with mechanical seal
• Long-coupled configuration to facilitate maintenance
• Standard Baldor NEMA motors fitted

Scope of delivery

• Pump and motor (pump end only available as an option)
• Installation and operating instructions

Technical specifications (summary)

• Series name: VeroLine-IPL
• Max. flow: 400 GPM
• Max. head: 65 ft
• Flange sizes: 1.5"–3" (ANSI Class 125; 250# optional)
• Shaft seal type: Q1Q1X4GG (example)
• Motor: TEFC standard, multiple voltage and pole options
