Circulator Z 15+ series

Circulator - Z 15+ series - Wilo
Circulator - Z 15+ series - Wilo
Add to favorites
Compare this product

Description

Product name

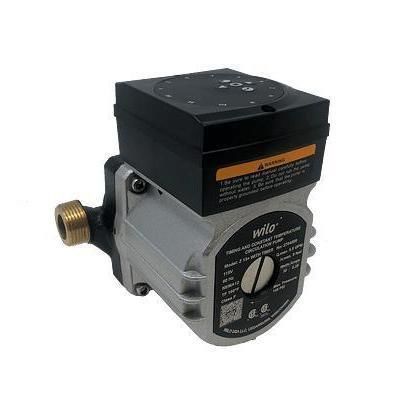

Z 15+ — glandless circulator pump for domestic hot water recirculation

Key features
  • CSA compliant to NSF-372 and NSF-61
  • Suitable for potable water systems
  • Available with or without timer; screwed (threaded) connection

Product variants (excerpt)
Product description | Mains connection | Gross weight, approx. | Pieces per pallet | Article number
Z 15+ W/O TIMER 75-9-5.5 | 1~115 V, 60 Hz | 5.00 lb | 216 | 2704549
Z 15+ W/O TIMER .75M-9-5.5 | 1~115 V, 60 Hz | 5.00 lb | 216 | 3396499
Z 15+ WITH TIMER 75-9-5.5 | 1~115 V, 60 Hz | 5.10 lb | 216 | 2704550
Z 15+ WITH TIMER .75M-9-5.5 | 1~115 V, 60 Hz | 5.10 lb | 216 | 3396500

Design
Glandless circulator with screwed (threaded) connection

Application
Domestic hot water recirculation (potable water systems)

Type key
Example: Z 15+ WITH TIMER
Pump model: Z 15+ WITH TIMER or Z 15+ WITHOUT TIMER
75 = Size of pump inlet and outlet in inches
9 = Maximum head in feet

Technical data
  • Water temperature range: 32°F to 160°F (0°C to 71°C)
  • Max. working pressure: 145 PSI (10 bar)
  • Electrical connections: 1~115 V, 60 Hz
  • Protection rating: NEMA 12

Certifications and documentation
CSA, NSF-372 and NSF-61 certificates available; installation and operating instructions, technical datasheets and submittals available on request

Characteristics / technical specifications
  • Model family: Z 15+
  • Variants: WITH TIMER / WITHOUT TIMER
  • Typical inlet/outlet size examples: 75 (inches)
  • Typical maximum head examples: 9 (feet)
  • Operating temperature: 32°F to 160°F (0°C to 71°C)
  • Max. working pressure: 145 PSI (10 bar)
  • Electrical: 1~115 V, 60 Hz
  • Approx. gross weight: ~5.00–5.10 lb (depending on variant)
  • Pieces per pallet: 216
  • Example article numbers: 2704549, 3396499, 2704550, 3396500
  • Compliance: CSA; NSF-372 / NSF-61
