Linux tablet M133WKU

13.3"Intel® Core i5Intel® Core™ i5-8265U

Short description

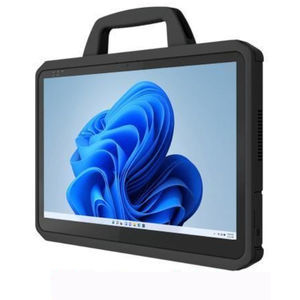

Winmate M133WKU is a 13.3-inch rugged industrial tablet designed as a mobile workstation for field and industrial applications. It features an Intel® Core™ i5-8265U processor, 1920 x 1080 IPS display with optical bonding for sunlight readability, a magnesium-alloy housing with elastomeric protection, an integrated kickstand that doubles as a carrying handle, and a cold-swap battery pack for continuous operation.
Key features

• Intel® Core™ i5-8265U processor
• 13.3" 1920 x 1080 IPS wide-view LED panel, 500 nits
• Projected capacitive multi-touch (glove / rain / stylus support)
• Magnesium alloy housing with elastomeric bumpers
• Built-in adjustable kickstand / carrying handle
• Cold-swap (hot-swap) battery pack
• IP65 dust and water protection
• Optical bonding for improved outdoor readability
• TPM 2.0 security

Certifications

• MIL-STD-810G
• IP65
• FCC
• CE

Overview
High performance with low power consumption: The M133WKU combines Intel® Core™ processing performance with energy-efficient operation suitable for demanding professional field applications.

Brilliant sunlight-readable display: The 13.3" FHD TFT-LCD with optical bonding and transflective enhancements delivers reliable legibility in both indoor and outdoor environments.

Capacitive multi-touch with switchable modes: Projected capacitive touch supports operation with gloves, in rain mode and with an active stylus for precise input.

Ultra-rugged design: Magnesium-aluminum alloy chassis with full elastomeric protection, tested to MIL-STD-810G and MIL-STD-461G standards to withstand drops, shock, vibration, temperature extremes, water and dust.

Ergonomics and usability: Integrated kickstand/handle and optional accessory handles allow safe transport and hands-free use; fanless design reduces maintenance.
Standard accessories

• Adapter and power cord
• Standard battery
• Stylus
• Stand with integrated kickstand

Optional accessories

• Vehicle charger
• Battery charger
• Desk docking station
• Additional handle / top handle

Specifications

• Model: M133WKU
• Display: 13.3 inches, 1920 x 1080, IPS, 500 nits, 1000:1 contrast, 89° viewing angles, optical bonding
• Touch: Projected Capacitive Multi-Touch (glove / rain / stylus)
• Processor: Intel Core i5-8265U 1.6 GHz (up to 3.9 GHz)
• Memory: 4GB SODIMM DDR4-2400 (standard); optional 8GB / 16GB
• Storage: 1 × 128GB M.2 SSD (standard); SDXC slot; optional additional M.2 SSDs up to 1TB
• Security: TPM 2.0; Kensington Lock
• OS: Ubuntu 22.04
• Wireless: WLAN (module), BT (module), WWAN 4G LTE (optional), GNSS GPS/GLONASS (optional)
• I/O: 4 × USB 3.0 Type-A, 1 × USB 3.0 Type-C, 1 × RJ45 GbE, SDXC slot, Micro SIM slot, docking connector, 2 × 1W speakers
• Indicators: 4 LEDs (Power, Battery, SSD, RF)
• Dimensions: 338.20 × 239.82 × 33.80 mm
• Weight: 2.2 kg (with kickstand)
• Cooling: Fanless design
• Environment: Operating temp -10°C to 50°C; storage -20°C to 60°C; humidity 30%–80% RH non-condensing
• Shock/Vibration/Drop: MIL-STD-810G (shock, vibration, 4 ft drop)
• Ingress Protection: IP65
• Battery: 15.4V typ. 5900 mAh Li-Polymer (4S1P); >10 hours (BAPCo TabletMark v3)
• Power: 19V DC; adapter 100–240V 50–60Hz
• Controls: 1 × Power, 1 × Menu, 2 × Volume, 3 × programmable function keys
