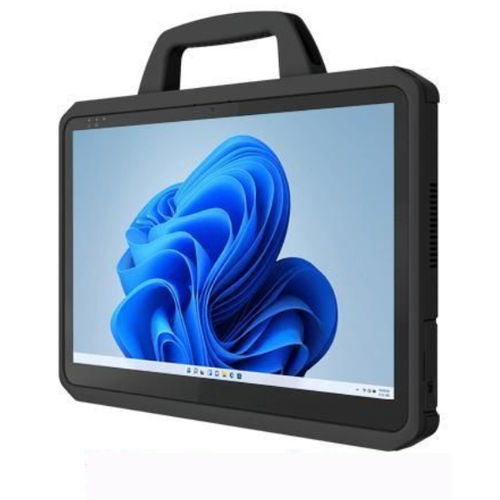

Windows 10 IoT Enterprise tablet M156AD-M3

Windows 11 IoT Enterprise15.6"12th Generation Intel® Core™

Short description

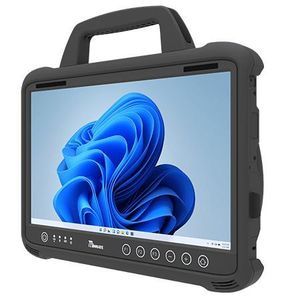

The Winmate M156AD-M3 is a 15.6-inch rugged Windows tablet PC powered by 12th gen Intel® Core™ i5-1235U, with optional discrete MXM graphics, sunlight-readable FHD PCAP touch, hot-swappable dual-battery design, integrated GigaLAN and MIL-STD/IP65 ruggedization for industrial and field deployment.
Key features

• 12th gen Intel® Alder Lake processor (Intel Core i5-1235U)
• 15.6-inch FHD (1920x1080) with projected capacitive multi-touch and 800 nits brightness
• Optional discrete MXM GPU (A500)
• Sunlight-readable display with optical bonding and anti-glare
• Hot-swappable dual-battery system for uninterrupted operation
• USB Type-C with PD 3.0 and ALT mode
• Integrated GigaLAN ports (2 x RJ45 10/100/1000)
• Compliant with MIL-STD-810H and MIL-STD-461G; IP65 sealing

Certifications

• IP65
• MIL-STD-461G
• MIL-STD-810H
• FCC
• CE

Overview / Product highlights Lightning-fast network performance
The integrated GigaLAN supports high-speed data and image transfers (10/100/1000 Mbps), suitable for factory automation, real-time monitoring and AIoT edge applications to reduce latency and improve response times.
Military and EMC compliance
Tested to MIL-STD-810H for shock, vibration and drops and to MIL-STD-461G for electromagnetic compatibility to ensure reliable operation in EMI-challenged environments.
Hot-swappable power
Dual-battery hot-swap design enables battery replacement without powering down the system, supporting continuous field operation.
Versatile interaction and outdoor readability
15.6-inch FHD display with optical bonding and anti-glare offers sunlight viewability; PCAP touch supports rain, glove and stylus modes for flexible input.
Industrial-grade protection
IP65-rated enclosure protects against dust ingress and low-pressure water jets for dependable use in harsh industrial environments.
Technical specifications

• Display: 15.6-inch PCAP multi-touch, 1920 x 1080, 800 nits
• Processor: Intel Core i5-1235U (up to 4.4 GHz)
• Memory: 8+8GB DDR5 standard; optional 16+16GB, 32+32GB
• Storage: 256GB M.2 NVMe SSD standard; up to 2TB options; 2nd storage slot optional
• Security: TPM 2.0, Kensington Lock
• OS: Windows 11 IoT Enterprise LTSC (64-bit) standard; Windows 10 IoT optional
• Wireless: WLAN, BT; WWAN optional (4G/5G)
• GNSS: GPS, GLONASS
• RFID: HF 13.56 MHz optional
• Cameras: 2 MP front, 8 MP rear with AF and LED
• Dimensions/Weight: 387.7 x 256.1 x 27.5 mm; 2.8 kg
• IO: 3 x USB 3.0 Type-A, 1 x USB 3.0 Type-C, 2 x RJ45 Gigabit, optional 2 x HDMI 4K
• Environment: Operating -20°C to 60°C; humidity 10%–90% non-condensing
• Power: 2 x 11.55V 3220 mAh hot-swappable batteries; typical runtime ~11 hours
