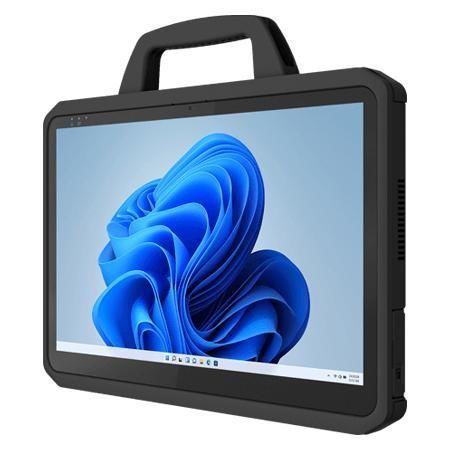

Windows 10 IoT Enterprise tablet M156AD

Windows 11 IoT Enterprise15.6"12th Generation Intel® Core™

Overview
The M156AD is a rugged 15.6-inch Windows tablet PC built for industrial and field applications. It integrates an Intel® Core™ i5-1235U processor, a 15.6" FHD projected capacitive (PCAP) touchscreen with optical bonding and anti-glare treatment, hot-swappable dual batteries, integrated GigaLAN ports, USB Type-C with PD 3.0 and ALT mode, and certifications for MIL-STD-810H, MIL-STD-461G and IP65.
Key Features

• 12th generation Intel® processor family — Intel® Core™ i5-1235U
• 15.6" FHD (1920 x 1080) panel with PCAP multi-touch
• 800 nits brightness, optical bonding and anti-glare for sunlight readability
• Hot-swappable dual-battery design for uninterrupted operation
• USB Type-C supporting PD 3.0 and ALT mode
• Integrated GigaLAN ports (2 x RJ45 10/100/1000)
• Conforms to MIL-STD-810H and MIL-STD-461G
• IP65 dust and low-pressure water jet protection

Certifications

• IP65
• MIL-STD-461G
• MIL-STD-810H
• CE
• FCC

Network and durability
The integrated GigaLAN (10/100/1000 Mbps) ensures high-speed wired connectivity and low latency for factory automation and AIoT workflows. The unit is tested to MIL-STD-810H for shock, vibration and drop and to MIL-STD-461G for electromagnetic compatibility, making it suitable for harsh industrial environments.
Interaction and ergonomics
The 15.6" PCAP touchscreen supports switchable modes for rain, glove and stylus operation. Optical bonding and 800 nits brightness improve outdoor readability. The hot-swappable dual-battery system enables battery replacement without shutting down the device to maintain continuous field operation.
Technical specifications

• Display: 15.6 inches, Projected Capacitive Multi Touch (PCAP)
• Resolution: 1920 x 1080 (FHD)
• Panel Brightness: 800 nits
• Contrast Ratio: 800:1
• Viewing Angles: 85/85/85/85
• Bonding: Optical Bonding for Sunlight Viewability
• Processor: Intel Core i5-1235U (up to 4.4 GHz)
• Memory: 8GB DDR5 SDRAM (standard); optional 16GB, 32GB; 2nd memory up to 32+32GB (optional)
• Storage: 256GB M.2 NVMe SSD (standard); optional 512GB, 1TB, 2TB; 2nd storage up to 2TB (optional)
• Security: TPM 2.0; Kensington Lock support
• Operating System: Windows 11 IoT Enterprise LTSC (64-bit) standard; Windows 10 IoT Enterprise LTSC optional
• WLAN / BT: Supported (model/config dependent)
• WWAN: 4G LTE (optional); 5G (optional)
• GNSS: GPS, GLONASS
• RFID: HF RFID reader 13.56 MHz (optional)
• Sensors: Ambient light sensor, G-sensor, Gyro
• Cameras: Front 2 MP; Rear 8 MP with autofocus and LED light
• Dimensions: 387.7 x 256.1 x 27.5 mm
• Weight: 2.8 kg
• Cooling: Fan design
• USB Ports: 3 x USB 3.0 (Type-A), 1 x USB 3.0 (Type-C)
• LAN: 2 x RJ45 10/100/1000 GigaLAN
• Video: Optional 2 x HDMI 4K output
• Audio: 1 x 3.5 mm combo jack; Dual digital microphone with noise cancellation; Dual speaker
• Card / SIM slots: 1 x Micro SDXC; 1 x Nano SIM
• Indicators: 2 x LEDs (Power, Battery)
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 70°C
• Shock / Vibration / Drop: MIL-STD-810H Methods (shock, vibration, 3 ft drop)
• IP Rating: IP65
• EMC: MIL-STD-461G CE101/CE102/RE101/RE102/CS118 (default); optional CS101/CS114/CS115/CS116/RS101/RS103
• Certifications: CE, FCC
• Control: 1 x Power button; 3 x Programmable function keys
• Battery: Hot-swappable 2 x 11.55V typ. 3220 mAh Li‑Ion (3S1P)
• Battery Operating Time: Standard battery ~11 hours
• Power Rating: 19V DC
• Adapter: 100-240V, 50-60Hz, 120W / 19.5V DC
• Standard Accessories: Adapter and power cord; Capacitive stylus; Top handle; Standard battery
• Optional Accessories: Spare battery; Battery charger; Kick-stand; Vehicle charger; Stand with integrated handle
