Windows 10 IoT Enterprise tablet M133MT

Windows 11 IoT Enterprise13.3"Intel® Core™ Ultra 5 125U

Overview

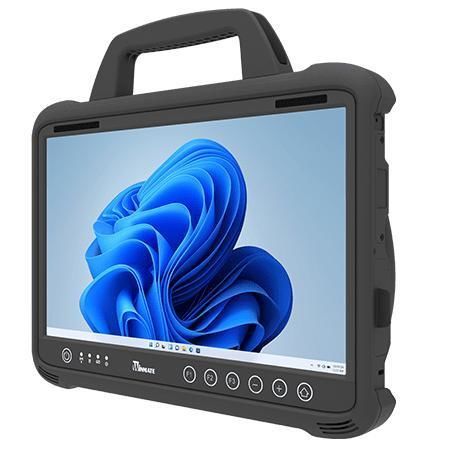

The Winmate M133MT is a 13.3-inch industrial ultra-rugged tablet built for field, vehicle and defense deployments. Powered by the Intel® Core™ Ultra 5 125U with integrated NPU, it supports on-device AI inference, real-time data processing and outdoor-usable visualization while meeting IP65 and MIL-grade durability requirements.

Key Features

• 13.3" Full HD (1920 x 1080) IPS sunlight-readable panel with optical bonding
• Intel® Core™ Ultra 5 125U (CPU + GPU + NPU)
• Projected capacitive multi-touch (finger, gloves, stylus)
• Magnesium alloy chassis with elastomeric rubber bumpers
• IP65 rated front; MIL-STD shock & vibration compliance
• Fanless thermal design; removable kickstand that doubles as carry handle

Certifications

• IP65
• MIL-STD-810G (shock, vibration, drop)
• MIL-STD-461G (EMC variants)
• CE, FCC

Design and Durability

• Sealed ports and elastomeric protection reduce contamination risk in dusty or wet environments.
• Mechanical and EMC options support vehicle, defense and outdoor deployments.
• Operating range designed for wide temperature and humidity conditions.

Display and Input

• 13.3" transflective IPS with 500 nits brightness and optical bonding for outdoor readability.
• PCAP multi-touch supports precise input with bare finger, gloved hand or stylus.

Performance and System

• Intel® Core™ Ultra 5 125U: balanced multicore performance with integrated NPU for edge AI tasks.
• Memory: 8GB standard; options 16GB, 32GB. Storage: 256GB SSD standard; up to 2TB optional + microSDXC.
• Windows 11 IoT Enterprise LTSC default; Windows 10 IoT LTSC optional; TPM 2.0 and Kensington lock support.

Connectivity & I/O

• 3 x USB 3.0 Type-A; 2 x USB 2.0 Type-A; 1 x USB 3.0 Type-C; 1 x RS232 (DB9); 1 x RJ45 Gigabit;
• Wi‑Fi and Bluetooth supported; WWAN 4G LTE optional; GNSS (GPS, GLONASS); optional HF RFID and 1D/2D barcode reader.

Power & Battery

• Standard battery: 15.4V typ. 5900 mAh Li‑Polymer (4S1P).
• Optional hot-swap battery and vehicle/desk charging solutions. Adapter: 100–240V AC → 19V DC.

Accessories (standard and optional)
Standard accessories

• Stand with integrated handle (rotating, doubles as kickstand)
• Adapter and power cord (100–240VAC to 19VDC)
• Standard battery (BM133)

Optional accessories

• Top handle, shoulder strap
• VESA mounting kits, vehicle dock, desk dock
• Vehicle charger, battery charger, hot-swap battery
• Stylus, 1D/2D barcode reader, additional mounting kits

Technical specifications

• Model: M133MT
• Display: 13.3 inches, 1920 x 1080 FHD IPS, Projected Capacitive Multi Touch, 500 nits, optical bonding
• Processor: Intel® Core™ Ultra 5 125U (2.1 GHz base, up to 4.3 GHz)
• Memory: 8GB default; 16GB / 32GB optional
• Storage: 256GB SSD default; optional 512GB / 1TB / 2TB; micro SDXC slot
• Security & OS: TPM 2.0; Kensington Lock; Windows 11 IoT Enterprise LTSC (64-bit) default
• Ports: 3x USB 3.0 Type-A; 2x USB 2.0 Type-A; 1x USB 3.0 Type-C; 1x RS232 (DB9); 1x RJ45 Gigabit; SDXC slot; docking connector
• Audio/Camera: 2 x 1W speakers; 8MP rear camera with AF and LED
• Dimensions: 338.2 x 239.8 x 33.8 mm; Weight: 2.4 kg (without kickstand), 2.5 kg (with kickstand)
• Operating temp/humidity: -20°C to 60°C; 30%–80% RH non-condensing
• Durability: MIL-STD-810G (shock/vibration/drop), Drop 4 ft; MIL-STD-461G EMC variants
• IP Rating: IP65
