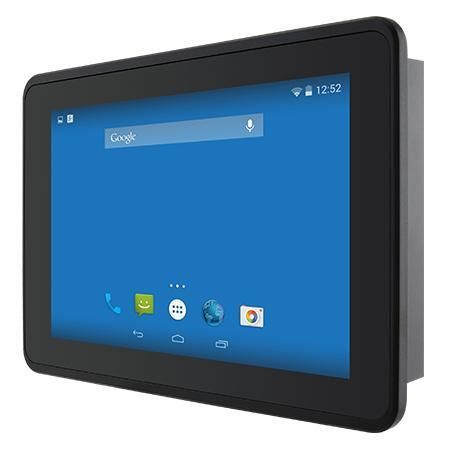

PCAP capacitive touch screen panel PC W10FA3S-ELH2

touch screenmultitouch screen10.1"

Product overview

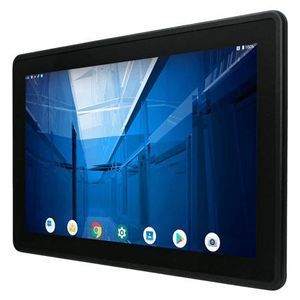

The W10FA3S-ELH2 is a 10.1" HMI panel PC designed for industrial operator interfaces and embedded applications. It features a projected-capacitive multi-touch display, fanless thermal design and front IP65 protection for use in demanding environments.

Key features

• 10.1" 1280 x 800 P‑Cap multi-touch display (4-point multi-touch)
• NXP i.MX6 Dual-Core 1.0 GHz processor
• Fanless cooling and ultra-low power consumption
• Front IP65 rating for water and dust protection
• Connectivity: 1 x USB 2.0 (Type-A), 1 x USB OTG, 1 x RS485 (3-pin terminal), 1 x RJ45 LAN
• Panel mount with quick-mounting clips; VESA support

Design highlights

• True-flat glass surface simplifies cleaning and reduces dust traps
• Lightweight metal housing for easy integration and deployment (approx. 1.2 kg)
• Open platform: Android and Linux OS options for software integration and customization
• Scratch-resistant glass cover lens supports reliable multi-finger operation
• Wide operating temperature and humidity range for industrial use

Certifications

• Front IP65
• CE
• FCC

Technical specifications

• Model: W10FA3S-ELH2
• Display - Size: 10.1 inches; Resolution: 1280 x 800; Brightness: 350 nits; Contrast: 800:1; View angles: 85/85/85/85; Active area: 216.96 x 135.6 mm
• Touch / Glass: Projected Capacitive multi-touch (4-point)
• Processor: NXP i.MX6 Dual Core, 1.0 GHz
• Memory: 1 GB (default), 2 GB optional
• Storage: Onboard eMMC 8 GB
• OS options: Linux Ubuntu 18.04; Android 6.0; Debian 7.0; Linux 4.1.15 QT 5.5 (optional)
• Dimensions: 267 x 182 x 47 mm; Cut-out: 244 x 159 mm; Weight: 1.2 kg
• Mounting: Panel mount (clips) and VESA mount
• Enclosure: Metal housing; Cooling: Fanless
• IO: 1 x USB2.0 (Type-A), 1 x USB OTG, 1 x RS485 (3-pin terminal block), 1 x RJ45 LAN
• Indicator: 1 x LED for storage
• Power input: 1 x 12~24V DC (3-pin terminal block), Power rating 12~24V with isolation; Adapter: 12V 50W (typical)
• Control: 1 x Reset button
• Operating humidity: 10%–90% RH non-condensing; Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• Accessories: 100~240V AC to DC adapter; power cord; terminal block adapter cable; open wire cable with terminal block connector; mounting clips; VESA screws
