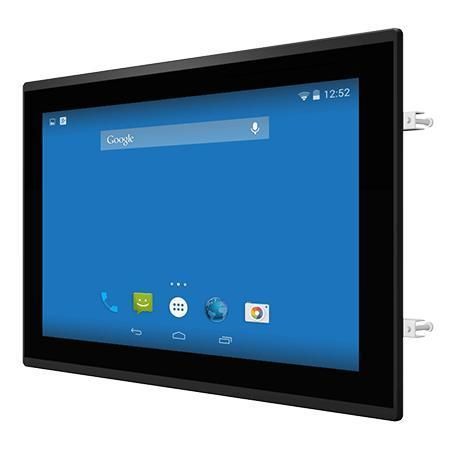

Multi-touch screen panel PC W15FA3S-ELA4

touch screenPCAP capacitive touch screen15.6"

Overview
The W15FA3S-ELA4 is a 15.6" industrial HMI panel PC powered by an NXP i.MX6 Dual-Core 1.0 GHz processor. It features a real-flat front bezel with projected capacitive (P‑CAP) multi-touch, fanless cooling, front IP65 protection and multiple mounting options including quick-install panel clips and VESA mount.

Key features

• 15.6" display, 1920 x 1080 resolution, Projected Capacitive Multi-Touch (P-CAP)
• NXP i.MX6 Dual-Core 1.0 GHz processor (ARM)
• Fanless cooling and ultra-low power consumption
• Front IP65 for dust and splash protection
• Connectivity: 1 x USB 2.0 (Type-A), 1 x USB OTG, 1 x RS485 (3-pin terminal), 1 x RJ45 LAN

Certifications

• Front IP65
• FCC
• CE

Product highlights / Design details

• Lightweight, multi‑purpose design for industrial and embedded applications
• Real-flat front bezel for easy cleaning and no clogged edges
• Open platform supporting Android and various Linux distributions for software customization
• P-Cap glass cover supports 4-point multi-touch and improves scratch resistance
• Quick-install mounting clips allow panel installation without drilling; VESA mounting supported

Technical specifications

• Model: W15FA3S-ELA4
• Display size: 15.6 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
• Resolution: 1920 x 1080
• Panel brightness: 300 nits
• Contrast ratio: 800:1
• Viewing angles: 85 / 85 / 85 / 85
• Active area: 344.16 x 193.59 mm
• Processor: NXP i.MX6 Dual Core, 1.0 GHz
• Memory: 1 GB (default); 2 GB optional
• Storage: eMMC onboard 8 GB
• Operating system (options): Android 6.0; Linux Ubuntu 18.04; Debian 7.0; Linux 4.1.15 QT 5.5 (options vary)
• Dimensions: 387.6 x 257.7 x 52.5 mm
• Cut-out (panel mount): 371.6 x 223.5 mm
• Weight: 2.2 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Metal housing
• Cooling system: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IP rating: Front IP65
• Certifications: CE, FCC
• USB: 1 x USB 2.0 (Type-A), 1 x USB OTG
• Serial: 1 x RS485 (3-pin terminal block)
• LAN: 1 x RJ45
• Indicator: 1 x LED indicator for storage
• Power input: 1 x 12~24V DC, 3-pin terminal block (isolated)
• Power rating / Adapter: 12~24V with isolation; adapter 12V 50W
• Accessories included/available: 100~240V AC to DC adapter, power cord, terminal block to 2.5Ø female adapter cable, open wire cable with terminal block connector, mounting clips, VESA screws
