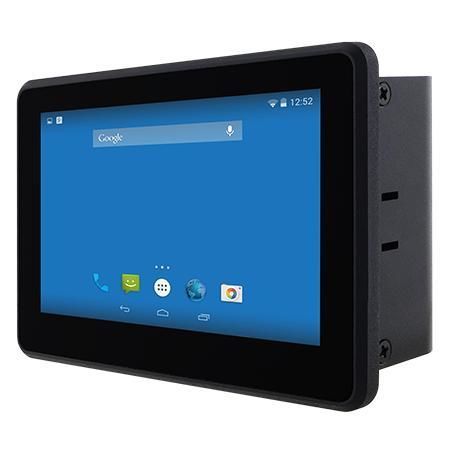

Multitouch screen panel PC W04FA3S-ELT1

PCAP capacitive touch screen4.3"480 x 272

Product overview
4.3" HMI panel PC W04FA3S-ELT1 equipped with an NXP i.MX6 Dual‑Core 1.0 GHz processor. Real flat front with projected capacitive (P‑Cap) multi‑touch, fanless cooling, front IP65 protection and panel-mount clips for fast installation.

Key features

• 4.3" display, 480 x 272 resolution, P‑Cap projected capacitive multi‑touch.
• NXP i.MX6 Dual‑Core 1.0 GHz processor; 1 GB RAM default, 2 GB optional; 8 GB onboard eMMC.
• Fanless design and ultra‑low power consumption for silent operation.
• Front IP65 for dust and splash protection.
• Interfaces: 1 x USB 2.0 (Type‑A), 1 x USB OTG, 1 x RS485 (3‑pin terminal), 1 x RJ45 (LAN).

Highlights / Product details

• Lightweight metal enclosure designed for integration in industrial HMI and embedded control panels.
• Real flat front simplifies cleaning and prevents dust accumulation on edges.
• Supports Android and Linux distributions for OEM customization and software integration.
• P‑Cap glass cover supports 4‑point multi‑touch and provides scratch resistance.
• Mounting clips allow rapid panel installation without additional drilling.

Certifications

• Front IP65
• FCC
• CE

Technical specifications

• Display — Size: 4.3 inches; Touch/Glass: Projected Capacitive Multi Touch Screen; Resolution: 480 x 272; Brightness: 400 nits; Contrast: 900:1; View angles: 80,60,80,80; Active area: 95.040 x 53.856 mm.
• System — Processor: NXP i.MX6 Dual Core 1.0 GHz; Memory: 1 GB default, 2 GB optional; Storage: 8 GB eMMC onboard; OS options: Linux Ubuntu 18.04, Android 6.0, Debian 7.0, Linux 4.1.15 QT 5.5 (options).
• Mechanical — Dimensions: 121 x 82 x 49 mm; Cut‑out: 109.6 x 71.2 mm; Weight: 0.3 kg; Mounting: Panel mount; Enclosure: Metal housing; Cooling: Fanless.
• Environment — Operating humidity: 10%–90% RH non‑condensing; Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C; IP rating: Front IP65.
• IO Ports — USB: 1 x USB2.0 (Type‑A), 1 x USB OTG; Serial: 1 x RS485 (3‑pin terminal block); LAN: 1 x RJ45; Indicator: 1 x LED for storage/activity.
• Power — Input: 1 x 12–24V DC via 3‑pin terminal block (isolated); Power adapter: typically 12V 50W.
• Control — 1 x Reset button.
• Accessories — 100–240V AC to DC adapter; power cord; terminal block to 2.5Ø female adapter cable; open‑wire cable with terminal block; mounting clips; VESA screws.
