Multi-touch screen panel PC W15IM3S-ELA2
PCAP capacitive touch screen15.6"1366 x 768

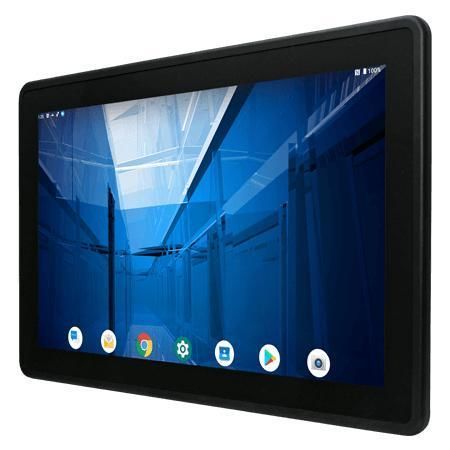

Multi-touch screen panel PC - W15IM3S-ELA2 - Winmate, Inc. - PCAP capacitive touch screen / 15.6" / 1366 x 768
Multi-touch screen panel PC - W15IM3S-ELA2 - Winmate, Inc. - PCAP capacitive touch screen / 15.6" / 1366 x 768
Multi-touch screen panel PC - W15IM3S-ELA2 - Winmate, Inc. - PCAP capacitive touch screen / 15.6" / 1366 x 768 - image - 2
Multi-touch screen panel PC - W15IM3S-ELA2 - Winmate, Inc. - PCAP capacitive touch screen / 15.6" / 1366 x 768 - image - 3
Multi-touch screen panel PC - W15IM3S-ELA2 - Winmate, Inc. - PCAP capacitive touch screen / 15.6" / 1366 x 768 - image - 4
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
multi-touch screen, PCAP capacitive touch screen
Display size
15.6"
Resolution
1366 x 768
Processor
Arm® Cortex®-A53 Quad-core
Operating system
Linux, Android, Linux® Yocto
Construction
metal chassis, fanless, in metal housing
Mounting
VESA mounting
Applications
industrial, for hygienic applications
Protection level
IP65
Other characteristics
WiFi, HMI, Ethernet, RJ45, wide temperature range, with external power adapter, USB 2.0, Bluetooth
Memory size

4 GB

Description

Overview
  • 15.6" EL‑series HMI Panel PC with projected capacitive (P‑Cap) multi‑touch and 1366 x 768 resolution designed for panel integration.
  • Real‑flat front bezel for easy cleaning and hygienic environments; metal housing and fanless design for industrial use.
  • Powered by MediaTek ARM A53 Quad‑Core 2.0 GHz; Android 11 default (upgradeable) with optional Linux distributions.
  • Panel‑mount installation with supplied mounting clips; optional VESA mounting available.


Key features
  • P‑Cap multi‑touch supporting 4‑point input; scratch‑resistant glass cover lens; 400 nits brightness and 500:1 contrast.
  • Default OS: Android 11 (upgradeable to Android 13); optional: Linux Yocto 5.10.104 with Qt 5.15 or Ubuntu Server 22.04.
  • Connectivity: 1 x USB 2.0 Type A, 1 x Micro USB 2.0 OTG, 1 x RS485 (3‑pin terminal block), 1 x RJ45 LAN; optional WLAN and Bluetooth.
  • Memory & storage: 4 GB LPDDR4 and onboard eMMC 32 GB.
  • Front panel rated IP65 for protection against dust and splashes.


Mechanical & deployment
  • Default panel mount with quick‑install mounting clips; VESA mount optional.
  • Dimensions: 402 x 251.3 x 53 mm; cut‑out: 368.2 x 227.3 mm; weight: 3.1 kg.


Environment & reliability
  • Operating temperature: -20°C to 50°C; storage: -25°C to 70°C.
  • Operating humidity: 10% to 90% RH, non‑condensing.
  • Fanless construction and metal enclosure increase MTBF in industrial environments.


Power
  • Input: 12V~24V via 3‑pin terminal block.
  • Optional adapters: 12V 36W and 100~240V AC→DC adapter with power cord available.


Certifications
  • CE
  • FCC


Accessories
  • Included: open‑wire cable with terminal block connector, mounting clips, VESA screws.
  • Optional: AC adapter (100~240V), power cord, terminal block to 2.5Ø female adapter cable, Wi‑Fi/BT antenna.


Additional product details
  • Real‑flat bezel reduces dirt accumulation at edges and simplifies maintenance in hygienic applications.
  • Android platform enables easy app integration and customization for HMI solutions.
  • Suitable for industrial HMI use requiring reliable operation across a wide temperature range.


Technical specifications
  • Model: W15IM3S-ELA2
  • Display size: 15.6"; Touch / Glass: Projected Capacitive Multi Touch Screen
  • Resolution: 1366 x 768; Panel brightness: 400 nits; Contrast ratio: 500:1; View angles: 85/85/80/80; Active area: 344.232 x 195.536 mm
  • Processor: ARM A53 (Quad Core 2.0 GHz)
  • Memory: 4 GB LPDDR4; Storage: eMMC onboard 32 GB
  • Operating system: Android 11 (default, upgradeable to Android 13); optional Linux Yocto 5.10.104 (Qt 5.15) or Ubuntu Server 22.04
  • WLAN / Bluetooth: optional
  • Dimensions: 402 x 251.3 x 53 mm; Cut out: 368.2 x 227.3 mm; Weight: 3.1 kg
  • Mounting: Panel mount (default); VESA mount (optional)
  • Enclosure: Metal housing; Cooling: Fanless
  • Operating humidity: 10%–90% RH non‑condensing; Operating temp: -20°C to 50°C; Storage temp: -25°C to 70°C; Front IP rating: IP65
  • Certifications: CE, FCC
  • I/O ports: 1 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG; 1 x RS485 (3‑pin terminal block); 1 x RJ45 LAN; 1 x LED indicator for storage
  • Power rating: 12V~24V via 3‑pin terminal block; Optional adapter: 12V 36W
  • Control: 1 x Reset Button
  • Included accessories: open wire cable with terminal block connector, mounting clips, VESA screws
