Windows 11 IoT Enterprise tablet M101TGWindows 10 IoT Enterprise10.1"Intel® Core™ i5-1135G7
Add to favorites
Compare this product
Characteristics
- Type
- Windows 11 IoT Enterprise, Windows 10 IoT Enterprise
- Display size
- 10.1"
- Processor
- Intel® Core™ i5-1135G7
- Memory
- 16 GB, 8 GB, 32 GB
- Protection level
- MIL-STD-810H, IP65, rugged
- Connectivity
- 4G LTE, USB Type-C, GPS, Bluetooth, WiFi, USB, 5G, GLONASS
- Screen type
- capacitive touch screen, projected capacitive touchscreen, multitouch screen
- Integrated peripheral
- 8-megapixel camera, with RFID reader, with barcode reader, webcam
- Data storage
- SSD 512GB, SSD 256GB, SSD 1TB
- Other characteristics
- sunlight-readable
Description
Overview
Key Features
Certifications
Product Highlights
System & Connectivity Summary
I/O & Expansion
Mechanical & Power
Environment & Ruggedness
Camera
Security & Management
Accessories (included / optional)
Technical specifications (summary)

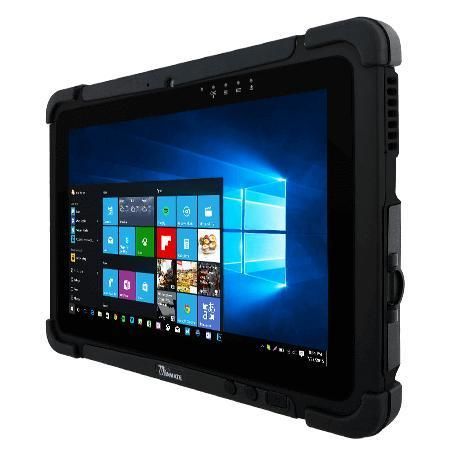

- 10.1-inch Windows rugged tablet PC M101TG powered by Intel® Core™ i5-1135G7 for industrial and field mobility applications.
Key Features
- 10.1-inch 1920 x 1200 IPS LED with optical bonding
- Intel® Core™ i5-1135G7 (Tiger Lake)
- IP65 ingress protection; MIL-STD-810H shock, vibration and drop resistance
- Sunlight readable with anti-glare treatment
- Hot-swappable battery design
- USB Type-C supporting Power Delivery 20V In
Certifications
- IP65
- MIL-STD-461G
- MIL-STD-810H
- FCC
- CE
Product Highlights
- High computing performance: Intel Core i5 delivers balanced performance and energy efficiency for professional field applications.
- Sunlight readable display: 10.1-inch IPS 1920x1200 with optical bonding and anti-glare touch for indoor/outdoor use.
- Projected capacitive multi-touch: PCAP supports Rain, Glove and Stylus modes for versatile input in the field.
- Rugged design: Engineered to meet MIL-STD-810H and IP65 for operation in harsh environments.
- Data collection tools: 8 MP rear camera, 2 MP front camera, optional 1D/2D barcode scanner and HF RFID.
System & Connectivity Summary
- Processor: Intel Core i5-1135G7 (2.4GHz base, up to 4.2GHz)
- Memory: 8GB DDR4 standard; optional 16GB or 32GB
- Storage: 256GB SSD standard; optional 512GB/1TB/2TB; micro SDXC expansion
- OS: Windows 11 IoT Enterprise LTSC 64-bit (standard); Windows 10 IoT Enterprise LTSC optional
- Wireless: WLAN, Bluetooth; WWAN optional (4G LTE / 5G)
- GNSS: GPS, GLONASS
I/O & Expansion
- USB: 1 x USB 3.0 Type-A; 1 x USB 3.0 Type-C (PD 20V In)
- Video: Micro HDMI (optional)
- Audio: 3.5mm combo jack; dual digital microphones with noise cancellation; dual speakers
- Slots: micro SDXC; micro SIM; 19-pin docking connector
- Indicators: LEDs for Power, Battery, HDD, RF
Mechanical & Power
- Dimensions: 271.8 x 197.2 x 21 mm
- Weight: 1.3 kg with standard battery
- Cooling: fan design
- Battery: hot-swappable 11.55V typ. 4558 mAh standard; optional 15.4V typ. 5900 mAh
- Battery life: ~8 hours (standard battery)
- Power rating: 19V DC; adapter 100-240V 50-60Hz
Environment & Ruggedness
- Operating humidity: 10% to 90% RH non-condensing
- Operating temperature: -20°C to 60°C
- Storage temperature: -30°C to 70°C
- Shock/vibration/drop: MIL-STD-810H (drop spec 4 ft)
- Ingress protection: IP65
- EMC: MIL-STD-461G profiles available
Camera
- Front: 2 MP
- Rear: 8 MP with autofocus and LED light
Security & Management
- TPM 2.0
- Kensington lock support
- SOTI MobiControl compatible for device management
Accessories (included / optional)
- Included: adapter and power cord, capacitive stylus, standard battery
- Optional: desk dock, vehicle dock/cradle, vehicle charger, high capacity battery, hand strap, shoulder strap, carry bag
Technical specifications (summary)
- Model: M101TG
- Brand: Winmate
- Display: 10.1-inch, 1920 x 1200, IPS LED, 800 nits, optical bonding
- Touch: Projected Capacitive Multi-Touch (Rain/Glove/Stylus)
- Processor: Intel Core i5-1135G7
- Memory: 8GB DDR4 (optional 16GB/32GB)
- Storage: 256GB SSD (optional up to 2TB)
- Security: TPM 2.0, Kensington Lock
- Wireless: WLAN, Bluetooth, optional WWAN (4G/5G)
- Ports: USB-A, USB-C (PD 20V In), Micro HDMI (opt), Micro SDXC, Micro SIM
- Operating temp: -20°C to 60°C; Ingress protection: IP65; Ruggedness: MIL-STD-810H
