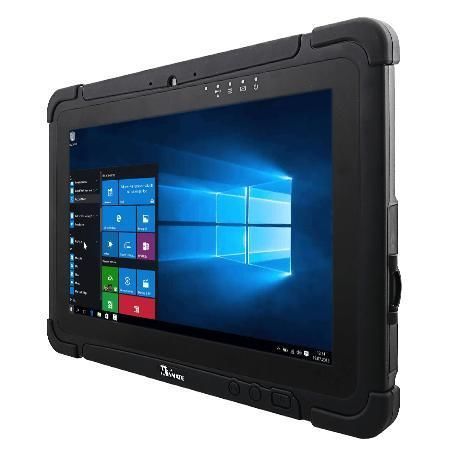

Windows 10 IoT Enterprise tablet M101PR

10.1"Intel® Pentium® N42004 GB

Overview
M101PR is a 10.1-inch rugged tablet powered by Intel® Pentium® N4200 (1.10 GHz, up to 2.50 GHz) with fanless cooling, designed for stable performance and low power consumption. Supports Windows 10 IoT Enterprise 64-bit for industrial and embedded applications.

Key features

• Intel® Pentium® N4200 Apollo Lake processor
• 10.1-inch 1920 x 1200 IPS display with optical bonding for sunlight readability
• Optional 1D/2D barcode reader and HF RFID (13.56 MHz) for data capture
• Hot-swappable battery design with optional high-capacity battery pack
• IP65 protection (dust and water resistant)
• Rugged design for extreme temperatures and field use
• Optional expansion port for USB / RS232
• 4-wire resistive touch

Certifications

• MIL-STD-810G
• IP65
• WiFi Certified
• Bluetooth SIG
• FCC
• CE

Product details
Stable performance: M101PR uses Intel® Pentium® N4200 with Turbo up to 2.50 GHz and a fanless design to ensure stable operation and low power consumption. Supports Windows 10 IoT Enterprise (64 bit).

Real-time data & wireless connectivity: integrated GPS/GLONASS, WLAN, Bluetooth and optional 4G LTE for reliable field communications and real-time positioning.

Rugged and mobile form factor: meets MIL-STD-810G for shock, vibration and drops (up to 1.20 m), features rubber bumpers and covered I/O ports; IP65 sealing for wet and dusty environments.

Data capture tools: optional integrated 1D/2D barcode reader, HF RFID 13.56 MHz reader and add-on UHF RFID or smartcard modules. Rear 8 MP autofocus camera with LED and front 2 MP camera.

Technical specifications

• Display: 10.1 inches, 1920 x 1200, Resistive touch; Panel brightness: 800 nits; Contrast: 800:1; Optical bonding
• Processor: Intel Pentium N4200 1.1 GHz (up to 2.5 GHz)
• Memory: 4 GB LPDDR4 standard; 8 GB optional
• Storage: 128 GB SSD standard; 256/512 GB optional; micro SDXC slot
• Operating system: Windows 10 IoT Enterprise (64 bit)
• Security: TPM 2.0; Kensington Lock
• Wireless: WLAN, Bluetooth; WWAN 4G LTE optional
• GNSS: GPS, GLONASS
• RFID: HF 13.56 MHz optional; UHF add-on optional
• Sensors: light sensor, G-sensor, gyroscope
• Cameras: front 2 MP; rear 8 MP with autofocus and LED
• Mechanical: 271.9 x 197.3 x 19.5 mm; Weight: 1.2 kg (standard battery); 1.4 kg (high-capacity)
• Power/Battery: hot-swappable Li-ion battery; optional high-capacity pack
• Cooling: fanless design
• Ports: 1 x USB 3.0 Type A; 1 x USB 3.0 Type C; micro HDMI (optional); 3.5 mm combo jack; dual digital microphones; dual speakers
• Expansion & slots: 1 x micro SDXC; 1 x micro SIM; expansion connector for USB 2.0 / full RS232 (optional)
• Indicators: 4 LEDs for Power, Battery, HDD, RF
• Ruggedness: MIL-STD-810G; IP65; drop up to 1.20 m

Accessories & options

• Desk dock, vehicle dock, docking connector
• Battery charger, high-capacity battery pack
• Smart card reader, UHF RFID module, capacitive stylus, hand/shoulder strap, carry bag
