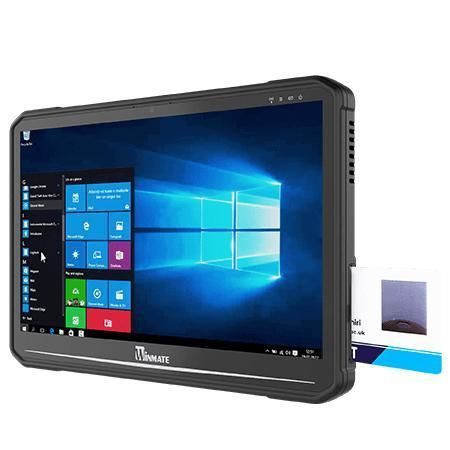

Windows 10 IoT Enterprise tablet M140TGT

Windows 11 IoT Enterprise14"Intel® Core™ i5-1135G7

Overview
Winmate M140TGT is a 14-inch industrial rugged tablet with an Intel® Core™ i5-1135G7 processor and an integrated Smart Card Reader. Engineered for field service, inspection, industrial mobility and mission-critical deployments, it combines sunlight-readable display technology, hot-swappable batteries and MIL-STD / IP protection to ensure continuous operation in harsh environments.

Key Features

• 11th Gen Intel® Tiger Lake CPU: Intel® Core™ i5-1135G7
• 14.0" FHD (1920 x 1080) wide viewing-angle LED with optical bonding and anti-glare
• Projected Capacitive multi-touch (rain and glove support)
• IP65 dust/water protection and MIL-STD-810H rugged housing
• Hot-swappable battery for uninterrupted operation
• Built-in Smart Card Reader (ISO7816 compliant)

Product Highlights / Use Cases

• Outdoor-usable display: optical bonding + anti-glare + 700 nits for readable field use.
• Wide operating temperature range for industrial and outdoor deployments.
• Always-on workflows enabled by internal battery plus hot-swap capability for shift-based operations.
• Flexible mounting and mobility: optional kickstand, integrated handle and vehicle/desk docking options.
• Connectivity: WLAN, Bluetooth, optional WWAN (4G/5G), optional GNSS and optional HF RFID.

Certifications & Compliance

• CE
• FCC
• MIL-STD-810H (shock, vibration, drop)

Technical specifications

• Model: M140TGT
• Brand: Winmate
• Display: 14.0" 1920 x 1080, 700 nits, 800:1 contrast, 85/85/85/85 viewing angles
• Touch: Projected Capacitive Multi-Touch (rain/glove supported)
• Processor: Intel® Core™ i5-1135G7 (2.4GHz up to 4.2GHz)
• Memory: 8GB default (options: 16GB, 32GB)
• Storage: 128GB SSD default (options up to 2TB); micro SDXC slot
• Smart Card Reader: Built-in, ISO7816-1/2/3 T=1/T=0
• Security: TPM 2.0; Kensington lock; SOTI MobiControl support
• OS: Windows 11 IoT Enterprise LTSC (64-bit) default; Windows 10 IoT Enterprise LTSC optional
• Ports: 2 x USB 3.0 Type-A; 1 x USB 3.0 Type-C (PD 20V In); 1 x RJ45 Gigabit; 1 x Micro HDMI (optional); 1 x 3.5mm combo jack
• Card slots: Micro SDXC; Nano SIM
• Cameras: Front 2MP; Rear 8MP AF + LED
• Dimensions / Weight: 341.91 x 224.67 x 25.4 mm; 1.75 kg
• Battery: Internal 10.8V 2400 mAh; hot-swappable 11.4V 3500 mAh (std) / 4750 mAh (opt)
• Battery runtime: Standard ≈ 8 hours; High capacity ≈ 12 hours
• Operating Temp: -20°C to 60°C (charging) / -10°C to 50°C (battery)
• Storage Temp: -30°C to 70°C
• Ruggedness: MIL-STD-810H; IP65; drop spec 4 ft
• Indicators & Docking: 4x LED status indicators; 19-pin docking connector
