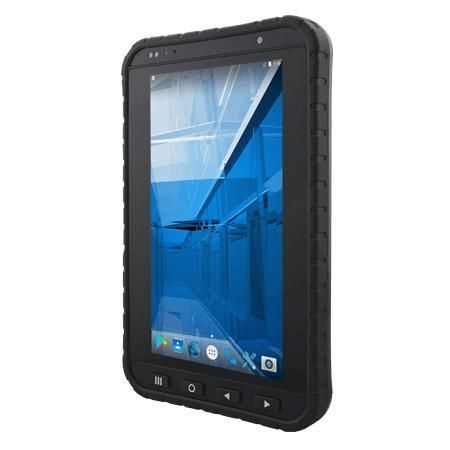

Android 15 tablet M700DQ9

7"octa-core8 GB

Overview
Winmate M700DQ9 is a 7-inch rugged Android tablet engineered for field service, inspection, industrial mobility and vehicle-mounted applications. It pairs a sunlight-readable 7" TFT display with optical bonding and a Qualcomm® QCS6490 octa-core processor, and supports Android 15.0 and enterprise device management.

Key features

• 7 inch TFT 1280 x 720 with direct optical bonding for sunlight viewability; 650 nits
• Qualcomm® QCS6490 octa-core processor; up to 2.7 GHz
• 8 GB RAM, 128 GB storage; Android 15.0
• IP65-rated rugged enclosure and MIL-STD-810H compliance
• Touch modes supporting hand, gloves and rain

Certifications

• CE
• FCC
• RCM
• MIL-STD-810H
• FirstNet / AT&T (SKU dependent)

Product highlights and usage
The M700DQ9 is designed for outdoor and industrial workflows that require durable hardware, reliable connectivity and long battery life. Typical use cases include field service, inspections, utilities, logistics, public safety and vehicle-mounted systems. It offers WLAN/BT, GNSS positioning (GPS/GLONASS), optional WWAN (4G/5G RedCap), optional NFC/RFID and optional 1D/2D barcode imaging. Vehicle and desk docking options facilitate in-vehicle installation and centralized charging.

Accessories (included / optional)

• Included: Universal adapter x1, Battery x1, USB Type-C cable x1
• Optional: Battery Charging Dock; Vehicle Dock (Charging + Connectors); Vehicle Dock (Charging Only); Desk Dock; Hand Strap; Micro SD Card; Capacitive Touch Stylus; Vehicle Adapter; USB-C to HDMI Adapter; 1D/2D barcode imager

Technical specifications

• Model: M700DQ9
• Brand: Winmate
• Display: 7.0 inches, 1280 x 720, Projected Capacitive Multi-Touch
• Panel brightness: 650 nits; Contrast: 800:1; Viewing angles 80/80/80/80; Optical bonding
• Processor: Qualcomm® QCS6490 Octa-Core, up to 2.7 GHz
• Memory: 8 GB RAM; Storage: 128 GB
• OS: Android 15.0
• Wireless: WLAN, Bluetooth; WWAN optional (4G/5G RedCap)
• GNSS: GPS / GLONASS
• RFID / NFC: optional read/write & P2P
• Cameras: Front 8 MP; Rear 16 MP with LED auxiliary light, autofocus
• Sensors: Ambient light, E-compass, gyroscope, accelerometer
• IO: 1 x USB 3.0 Type-C OTG; 1 x Micro SD slot; 1 x Micro SIM slot + 1 x eSIM; Audio combo; Docking connector; LEDs
• Buttons: Volume +/-, Power, Home, Menu, Return, Trigger
• Battery: 3.7 V, 5300 mAh; Operating time: up to 20 hr
• Dimensions: 212.4 x 132.8 x 19 mm; Weight: 550 g
• Operating temp: -10°C to 50°C (battery); -20°C to 60°C (charging); Storage temp: -30°C to 70°C
• Humidity: 5%–95% RH non-condensing
• Ruggedness: IP65; MIL-STD-810H (shock, vibration, drop 5 ft)
• Security / MDM: SOTI MobiControl compliance
