Android 11 tablet S101M9

10.1"Arm® Cortex®-A53 Quad-coreARM Cortex A73 Dual-core

Overview

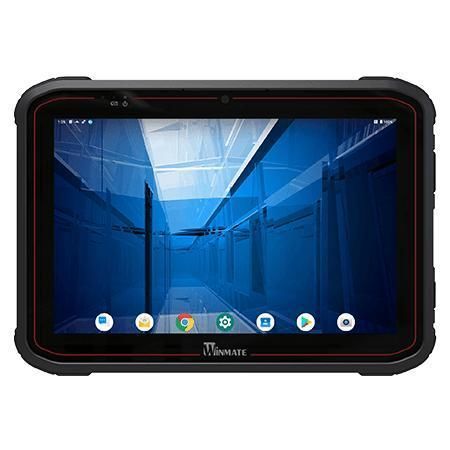

Winmate S101M9 is a 10.1-inch industrial Android tablet (model S101M9) built for field service, inspection and vehicle-mounted applications. It combines an ARM A73 + A53 octa-core processor with Android 11 and a WXGA-class 1920×1200 high-brightness display for outdoor use, while offering modular options such as 1D/2D barcode reader, NFC and optional WWAN.

Key features

• 10.1" 1920 × 1200 TFT LCD, projected capacitive multi-touch (PCAP) with Glove / Rain / Stylus modes
• ARM A73 x4 (2.0 GHz) + A53 x4 (2.0 GHz) octa-core processor
• 4 GB RAM, 32 GB eMMC (Micro SD expandable)
• Android™ 11.0 operating system
• Front 8 MP camera; rear 13 MP camera with LED auxiliary light and auto focus
• Optional integrated 1D/2D barcode reader and optional NFC module
• High brightness 800 nits, optical bonding and anti-glare for sunlight viewability
• Connectivity: Wi‑Fi, Bluetooth, GNSS (GPS/GLONASS), optional 4G/LTE

Certifications

• IP65
• MIL‑STD‑810H (shock, vibration, drop)
• CE
• FCC

Product Details
The S101M9 targets industrial buyers, OEMs and system integrators requiring long-life hardware for mobile workflows. Typical applications include field inspection, asset management, logistics and vehicle-mounted operations. Multi-touch PCAP with optical bonding ensures readability in daylight; the device supports barcode capture (optional), NFC-based interactions, photographic documentation and secure device management via SOTI MobiControl. Mounting and power options include vehicle cradles, VESA kits and docking stations.

Technical specifications

• Model: S101M9
• Display: 10.1 inches, 1920 × 1200, PCAP multi-touch, 800 nits, optical bonding
• Processor: ARM A73 x4 + A53 x4 (2.0 GHz)
• Memory / Storage: 4 GB RAM; 32 GB eMMC (expandable via Micro SD)
• Operating System: Android 11.0
• Cameras: Front 8 MP; Rear 13 MP (LED auxiliary light, Auto Focus)
• Wireless: WLAN, Bluetooth, GNSS (GPS/GLONASS), WWAN 4G/LTE (optional)
• I/O: 1 × USB Type‑C OTG; 1 × USB Type‑A; 1 × RJ45; 1 × Micro HDMI (optional); 1 × Audio combo; Micro SD slot; SIM slot; Docking connector
• Sensors: Ambient light, E‑Compass, Gyro, Accelerometer
• Dimensions / Weight: 268 × 187 × 22.2 mm; ~1.0 kg
• Battery: 11.4 V typ. 3500 mAh Li‑Ion (39.9 Wh) default; warm swap and high‑capacity options
• Operating range: -20°C to 60°C; Storage: -30°C to 70°C; Humidity: 10%–90% RH non‑condensing
• Durability: IP65; MIL‑STD‑810H shock/vibration/drop
• Security / Management: SOTI MobiControl compliance; Kensington Lock support
• Accessories: adapter & power cord, standard battery; optional: hand strap, shoulder strap, vehicle cradle, VESA kit, desk dock, carry bag, capacitive stylus, micro SD, chargers
