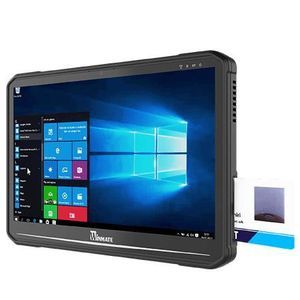

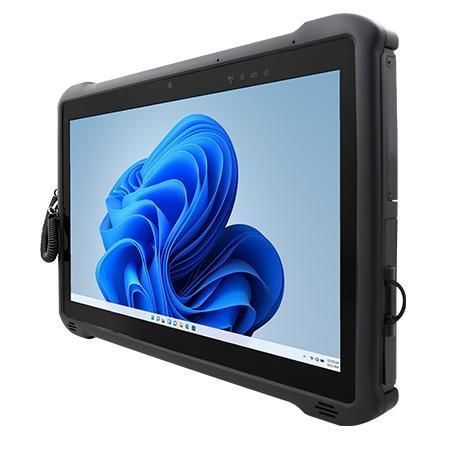

Windows 10 IoT Enterprise tablet M116AN

Windows 11 IoT Enterprise11.6"Intel® Processor N150

Overview
The Winmate M116AN is an 11.6-inch Windows rugged tablet PC designed for defense operations, field command, and mission-critical mobility. It features Intel® Twin Lake Processor N150, an 11.6" 1920x1080 sunlight-readable display with direct optical bonding, IP65 ingress protection, MIL-STD-810H compliance for shock/vibration/drop, fanless design, hot-swappable battery support and optional integrated data collection modules (1D/2D barcode reader, HF RFID) and modular smartcard reader.

Key Features

• Intel® Twin Lake Processor N150 up to 3.60 GHz
• 11.6" 1920 x 1080 LED panel with direct optical bonding
• IP65 rated enclosure; MIL-STD-810H for shock, vibration and drop resistance
• Sunlight readable display with anti-glare treatment
• Projected capacitive multi-touch with glove/stylus/rain/hand support
• Optional integrated 1D/2D barcode reader and HF RFID 13.56 MHz
• Optional modular Smartcard Reader (ISO7816 compliance)
• Removable hot-swappable battery with hotswap function for continuous operation
• Fanless architecture for silent operation and improved reliability in dusty environments

Certifications

• CE
• FCC
• IP65
• MIL-STD (MIL-STD-810 series compliance indicated, referenced MIL-STD-810H)
• TELEC (listed)

Product Details
Display

• Size: 11.6 inches
• Resolution: 1920 x 1080
• Type: Projected Capacitive Multi Touch
• Panel Brightness: 850 nits (high-brightness)
• Contrast Ratio: 1000:1
• View Angles: 85/85/85/85
• Bonding: Optical Bonding for sunlight viewability
• Viewability: Anti-Glare touch treatment
• Touch Mode: Support Hand/Rain, Stylus, Glove Mode

System Specification

• Processor: Intel® Twin Lake Processor N150 (up to 3.60 GHz)
• Memory: 4GB (Default); 8GB and 16GB optional
• Storage: 128GB SSD (Default); micro SDXC slot for additional storage; 256GB and 512GB SSD optional
• Smart Card Reader: Optional modular Smart Card Reader, ISO7816 (T=1 and T=0 protocols)
• Security: TPM 2.0, Kensington lock
• Operating System: Windows 11 IoT Enterprise LTSC (64-bit) default; Windows 10 IoT Enterprise LTSC (64-bit) optional
• WLAN / BT: Supported (Wi-Fi and Bluetooth)
• WWAN: Optional 4G LTE or 5G
• GNSS: GPS, GLONASS
• RFID: Optional HF RFID 13.56 MHz (reader)
• Sensors: Light sensor, G-sensor, Gyro

Camera

• Front Camera: 2 MP
• Rear Camera: 8 MP with autofocus and LED light

Mechanical

• Dimensions: 300.67 x 201.97 x 22.5 mm
• Weight: 1.4 kg
• Cooling System: Fanless design

IO Ports

• USB: 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C with PD 20V In)
• LAN: 1 x RJ45 10/100/1000 (optional)
• Video: 1 x Micro HDMI (optional)
• Audio: 1 x 3.5mm audio combo jack; Dual digital mic with noise cancellation
• SD Card Slot: 1 x Micro SDXC slot
• SIM Card Slot: 1 x Micro SIM slot
• Indicators: 4 x LED indicators for Power, Battery, HDD, RF status
• Docking Connector: 1 x 19-pin docking connector

Power

• Battery: Hot-swappable 7.7V typ. 5900 mAh Li-Polymer Battery (2S1P) default; optional 7.4V typ. 10280 mAh Li-Polymer Battery (2S2P)
• Battery Operating Time: Standard battery ~8 hours
• Power Rating: 19V DC
• Adapter: 100-240V, 50-60Hz (19V DC)

Accessories (standard & optional)

• Standard: Adapter and Power Cord, Capacitive Stylus, Standard Battery
• Optional: Desk Dock, Vehicle Dock, Vehicle Cradle, Vehicle Charger, Battery Charger, High Capacity Battery, Hand Strap, Shoulder Strap, VESA Mount Kit, Carry Bag

Barcode / Data Capture

• Optional 1D/2D barcode reader
• Optional HF RFID 13.56 MHz reader

Use Cases & Target Markets
Designed for defense operations, field command, industrial and field service applications, OEM integration, warehousing, inspections, job orders, EMS, police, and shop-floor data collection where ruggedness, sunlight readability, secure authentication and long lifecycle availability are required.

Caractéristiques / spécifications techniques

• Model: M116AN
• Display: 11.6", 1920 x 1080, 850 nits, optical bonding, P-CAP multi-touch
• Processor: Intel® Twin Lake N150 (up to 3.60 GHz)
• Memory: 4GB default; 8GB / 16GB optional
• Storage: 128GB SSD default; micro SDXC slot; 256GB / 512GB SSD optional
• Cameras: 2MP front, 8MP rear with AF and LED
• Battery: Hot-swappable 7.7V 5900 mAh default; optional 10280 mAh
• Operating Temp.: -20°C to 60°C
• Ingress / Ruggedness: IP65; MIL-STD-810H (shock, vibration, drop)
• Dimensions / Weight: 300.67 x 201.97 x 22.5 mm / 1.4 kg
• I/O: USB-A 3.0, USB-C 3.0 (PD 20V In), Micro HDMI (optional), RJ45 Gigabit (optional), 3.5mm audio, Micro SDXC, Micro SIM, 19-pin docking
• Security: TPM 2.0, Kensington Lock, optional Smartcard Reader (ISO7816)
• Wireless: Wi-Fi, Bluetooth, optional 4G LTE / 5G, GNSS (GPS/GLONASS)
• Optional Modules: 1D/2D barcode reader, HF RFID reader, Smartcard reader
• Certifications: CE, FCC, IP65, MIL-STD-810H (MIL-STD series)
