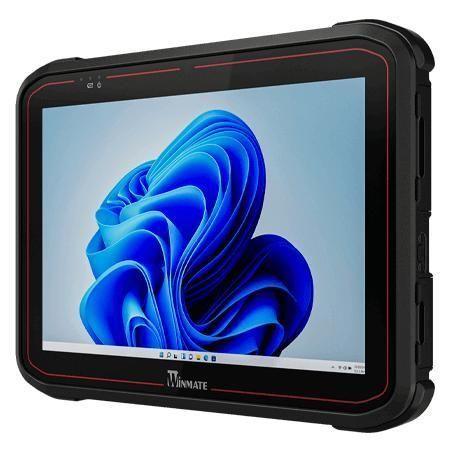

Windows 10 IoT Enterprise tablet S101MT

Windows 11 IoT Enterprise10.1"Intel® Core™ Ultra 5 125U

Summary
The Winmate S101MT is a 10.1-inch Windows rugged tablet powered by the 14th Gen Intel® Meteor Lake platform (Intel® Core™ Ultra 5 125U). It is built for field service, inspection, industrial mobility and vehicle-mounted applications where long lifecycle availability, outdoor readability and reliable performance are required.

Key Features

• Intel® Meteor Lake (Intel® Core™ Ultra 5 125U)
• 10.1-inch 1920 x 1200 WUXGA PCAP multi-touch (glove/stylus/rain support)
• Sunlight readable with anti-glare and optical bonding (800 nits)
• IP65 water and dust protection; MIL-STD-810H compliant housing
• 2 MP front camera; 8 MP AF rear camera with LED
• Removable battery with optional hot-swap; standard and high-capacity options
• Gigabit LAN (RJ45) and multiple I/O including USB-A, USB-C (PD & ALT), Micro HDMI (optional)
• Optional 1D/2D barcode reader; WWAN (4G/5G) and GNSS options

Overview
Performance and edge AI: The S101MT leverages Meteor Lake for improved CPU/GPU performance and integrated AI acceleration suitable for edge computing tasks. Display and input: 10.1-inch WUXGA projected capacitive multi-touch with optical bonding and anti-glare treatment ensures outdoor visibility and supports multiple touch modes. Power and field operations: Removable battery design with optional hot-swap and high-capacity packs enables uninterrupted use during long shifts. Durability and deployment: IP65 and MIL-STD-810H certification, fan-cooled design and vehicle-ready power/docking options make the unit appropriate for industrial, outdoor and vehicular environments.

Certifications

• IP65
• MIL-STD-810H
• CE
• FCC

Standard & Optional Accessories (selection)

• Standard: Adapter and Power Cord; Standard Battery (BTS101)
• Optional: Hand Strap, Shoulder Strap, VESA Mount Kit, Vehicle Cradle, Battery Charger, Carry Bag, High Capacity Battery, Vehicle/Desk Docking, Capacitive Stylus, 1D/2D Barcode Reader

Additional Highlights

• Optional WWAN: 4G LTE or 5G
• GNSS: GPS, GLONASS
• Security: TPM 2.0, Kensington Lock support; SOTI MobiControl compatibility
• Expansion: 19-pin docking connector, optional expansion for USB3.0 / UART

Technical specifications

• Display: 10.1-inch; 1920 x 1200 (WUXGA); PCAP multi-touch; 800 nits; optical bonding; anti-glare; touch modes: hand/rain, stylus, glove
• Processor: Intel® Core™ Ultra 5 125U (2.1 GHz up to 4.3 GHz)
• Memory: 8 GB default; optional 16 GB / 32 GB
• Storage: 128 GB SSD default; optional 256/512 GB / 1 TB / 2 TB; micro SDXC slot
• OS: Windows 11 IoT Enterprise LTSC (64-bit) default; Windows 10 IoT Enterprise LTSC optional
• Cameras: 2 MP front; 8 MP rear AF with LED
• I/O: 1 x USB 3.0 Type-A; 1 x USB 3.0 Type-C (PD 20V In & ALT); 1 x RJ45 Gigabit LAN; 1 x Micro HDMI (optional); 1 x 3.5 mm audio combo; Micro SDXC; Nano SIM; 19-pin docking connector; expansion connector (optional)
• Battery: Standard 11.4V typ. 3500 mAh; optional 4750 mAh high capacity; hot-swap optional; runtime ~10.4 h (standard) / ~14.8 h (high capacity)
• Mechanical: Dimensions 272 x 192 x 25 mm; Weight 1.1 kg; fan-cooled
• Environment: Operating -20°C to 60°C; Storage -30°C to 70°C; Operating humidity 10%–90% RH non-condensing; Shock/Vibration/Drop per MIL-STD-810H; IP65
• Certifications: CE, FCC
• Security & Management: TPM 2.0; Kensington Lock; SOTI MobiControl
