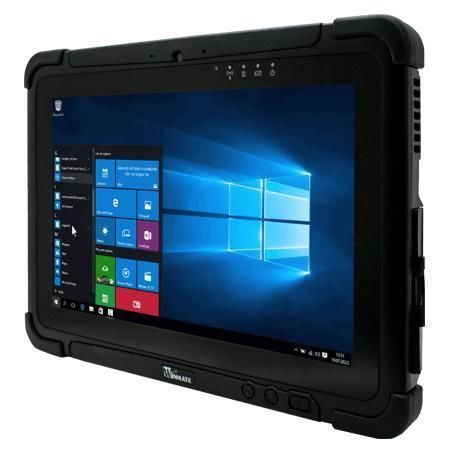

Windows 10 IoT Enterprise tablet M101AD

Windows 11 IoT Enterprise10.1"Intel® Core i5-1235U

Overview
The Winmate M101AD is a rugged 10.1-inch Windows tablet built for field and industrial applications. It integrates an Intel Core i5-1235U processor, a sunlight-readable P-CAP touch display with optical bonding, and a hot-swappable battery for continuous operation. Certified to MIL-STD-810H, MIL-STD-461G and IP65 for operation in harsh environments.

Key Features

• Intel® Core™ i5-1235U processor
• 10.1-inch 1920 x 1200 IPS LED with optical bonding
• Sunlight-readable with anti-glare touch
• Hot-swappable battery design
• USB Type-C (PD 3.0, ALT mode)
• Integrated RJ45 Gigabit LAN
• MIL-STD-461G, MIL-STD-810H compliant; IP65

Certifications
CE, FCC

Display

• Size: 10.1 inches
• Resolution: 1920 x 1200
• Type: Projected Capacitive Multi-Touch (P-CAP)
• Panel Brightness: 800 nits
• Contrast Ratio: 800:1
• View Angles: 85/85/85/85
• Bonding: Optical bonding for enhanced outdoor viewability
• Surface: Anti-glare touch treatment

System Specification

• Processor: Intel Core i5-1235U (up to 4.4 GHz)
• Memory: 8GB DDR5 standard; optional 16GB / 32GB DDR5
• Storage: 256GB M.2 NVMe SSD standard; optional 512GB / 1TB / 2TB; micro SDXC slot
• Security: TPM 2.0; Kensington lock
• OS: Windows 11 IoT Enterprise LTSC (64-bit) standard; Windows 10 IoT Enterprise LTSC optional
• WLAN / Bluetooth: supported (module)
• WWAN: optional 4G LTE / 5G
• GNSS: GPS, GLONASS
• RFID: HF 13.56 MHz optional
• Sensors: Ambient light sensor, G-sensor, gyroscope

Camera

• Front: 2 MP
• Rear: 8 MP with auto-focus and LED light

Mechanical

• Dimensions: 271.5 x 198.2 x 23.3 mm
• Weight: approx. 1.2 kg
• Cooling: fan design

IO Ports

• USB: 1 x USB 3.0 Type-A; 1 x USB 3.0 Type-C (supports PD 20V In & ALT mode)
• LAN: 1 x RJ45 10/100/1000 GigaLAN
• Audio: 1 x 3.5 mm audio combo jack; dual digital mic with noise cancellation; dual speaker
• Card / SIM: 1 x micro SDXC slot; 1 x Nano SIM slot
• Indicators: 4 x LEDs (Power, Battery, HDD, RF)
• Docking: 1 x 19-pin docking connector

Environment & Ruggedness

• Operating Humidity: 10% to 90% RH non-condensing
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 70°C
• Shock & Vibration: MIL-STD-810H methods
• Drop: MIL-STD-810H (4 ft)
• IP Rating: IP65
• EMC: MIL-STD-461G CE102, RE102, CS118 (default)

Security & Management

• SOTI MobiControl compatible
• Kensington lock support

Controls

• Buttons: Power, Home, 2 x Volume keys, 2 x Programmable function keys

Power

• Battery: Hot-swappable 11.55V typ. 4558 mAh Li-Polymer standard; optional 15.4V typ. 5900 mAh
• Battery Time: standard battery approx. 8 hours
• Power Rating: 19V DC
• Adapter: 100-240V 50-60Hz input; 19V DC output

Accessories

• Standard: adapter & power cord, capacitive stylus, standard battery
• Optional: desk dock, vehicle dock/cradle, vehicle charger, high-capacity battery, hand/shoulder strap, carry bag

Barcode Scanner

• Optional 1D/2D barcode reader

Specifications

• Model: M101AD
• Brand: Winmate
• Processor: Intel Core i5-1235U
• Display: 10.1-inch 1920 x 1200, 800 nits, P-CAP, optical bonding
• Memory: 8GB / 16GB / 32GB DDR5
• Storage: 256GB M.2 NVMe (standard); up to 2TB optional; micro SDXC
• Rugged: MIL-STD-810H, MIL-STD-461G, IP65
• OS: Windows 11 IoT Enterprise LTSC (64-bit) standard
