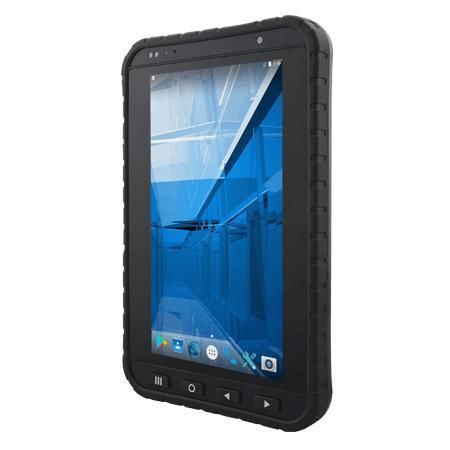

Android 11 tablet M700DM9

7"Arm® Cortex®-A53 Quad-coreARM Cortex A73 Dual-core

Overview
The M700DM9 is a 7-inch rugged Android tablet designed for field service, inspection and industrial mobility. It integrates an ARM A73 + A53 octa-core processor, Android 11, a sunlight-readable 1280 x 720 display with optical bonding, MIL-STD shock/vibration protection and IP65 sealing to support mission-critical workflows in harsh environments.

Key Features

• 7.0" TFT 1280 x 720 with direct optical bonding, 650 nits
• IP65 waterproof and dustproof; MIL-STD-810H shock & vibration compliance
• ARM A73 + A53 octa-core CPU, 4 GB RAM, 64 GB eMMC storage
• Android 11.0 OS; PCAP multi-touch supporting glove and rain modes
• Operating range: -10°C to 50°C (battery), -20°C to 60°C (charging)

Product details
The tablet offers long battery life with a default 3.7V 5300mAh battery (warm-swappable option available) and up to ~20 hours runtime depending on use. Dimensions 212.4 x 132.8 x 19 mm and weight ~550 g make it suitable for handheld use or vehicle mounting with Pogo-pin docks and vehicle dock options.

Cameras & Data Capture
Front 8 MP and rear 13 MP cameras with LED auxiliary light and autofocus provide proof-of-work imaging and video conferencing. An optional integrated 1D/2D barcode scanner is available for fast, accurate logistics and inventory capture.

Connectivity & Expansion
Wireless: Wi‑Fi, Bluetooth; optional 4G/LTE and GNSS (GPS/GLONASS). Optional NFC (read/write, P2P). I/O: 1 x USB Type-C OTG, audio combo (mic-in/line-out), micro SD slot, micro SIM slot, built-in mics and speaker, earphone jack, LED indicators and docking connector.

Rugged & Mechanical
Mechanical robustness includes MIL-STD-810H shock and vibration compliance and a 5 ft drop rating. Optical bonding and 650 nits brightness ensure outdoor legibility. Designed for vehicle installation and continuous field operations.

Accessories

• Standard: Universal adapter, battery
• Optional: Capacitive stylus, USB Type-C cable, USB-C to HDMI adapter, 2-bay battery charging dock, desk dock, vehicle dock (charging or charging+connectors), carry bag, micro SD, vehicle adapter, hand strap

Certifications & Security
Certifications: CE, FCC. Device management: SOTI MobiControl compatibility for enterprise lifecycle and remote management.

Technical specifications

• Display: 7.0" TFT, 1280 x 720, PCAP multi-touch, 650 nits, optical bonding
• Processor: ARM A73 x4 (2.0 GHz) + A53 x4 (2.0 GHz)
• Memory/Storage: 4 GB RAM, 64 GB eMMC
• OS: Android 11.0
• Cameras: Front 8 MP; Rear 13 MP with LED and AF
• Battery: 3.7V 5300mAh (default), warm-swappable optional; up to ~20 Hr
• Environment: Operating -10°C to 50°C (battery), -20°C to 60°C (charging); storage -30°C to 70°C; humidity 5–95% RH non-condensing
• Ruggedization: IP65; MIL-STD-810H; 5 ft drop
• I/O: USB Type-C OTG, audio combo, micro SD, micro SIM, docking connector
• Connectivity: Wi‑Fi, Bluetooth, GNSS; optional 4G/LTE, NFC
• Certifications: CE, FCC
