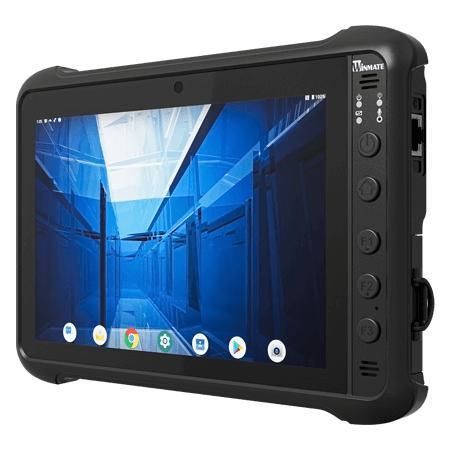

Android 13 tablet M900MGN

8"ARM® Cortex®-A55 Quad-coreARM Cortex-A78

Overview
Winmate M900MGN is a rugged 8-inch Android tablet built on the ARM Genio 510 platform with integrated NPU/VPU and Android 13.0. Designed for field service, inspections, industrial mobility and edge AI applications, it pairs a hexa-core CPU with on-device AI acceleration, sunlight-readable display and extensive I/O for vehicle and site integration.

Key Features

• 8" 1280×800 IPS LED with direct optical bonding (sunlight readable, anti-glare)
• Android 13.0
• 4 GB RAM + 64 GB eMMC onboard storage
• ARM Genio 510 (2×A78 2.0 GHz + 4×A55 2.0 GHz) with integrated NPU/VPU
• Optional WWAN 4G/LTE and GNSS (GPS/AGPS)
• Projected capacitive (PCAP) multi-touch with Glove Mode and Rain Mode
• Peak brightness up to 800 nits; IP65 and MIL-STD-810H certified

Certifications

• CE
• FCC

Product Highlights

• Sunlight-readable 8" IPS display with direct optical bonding for outdoor visibility and reduced reflections.
• PCAP touchscreen optimized for gloved operation and wet conditions (Rain Mode).
• Optional 4G WWAN and GNSS for continuous connectivity and location tracking in field deployments.
• Rugged mechanical design meeting IP65 and MIL-STD-810H for shock, vibration and 4 ft drop protection; suited for vehicle docks and industrial mounts.

Technical specifications

• Model: M900MGN
• Display: 8.0 inches; Projected Capacitive Multi Touch; 1280×800; Brightness 800 nits; Contrast 1500:1; View angles 80/80/80/80; Optical bonding
• Processor: ARM Genio 510 (2×Cortex‑A78 2.0 GHz + 4×Cortex‑A55 2.0 GHz)
• Memory: 4 GB RAM
• Storage: Onboard 64 GB eMMC
• OS: Android 13.0
• Wireless: WLAN supported; Bluetooth supported; WWAN: 4G/LTE optional; GNSS: GPS/AGPS
• RFID/NFC: NFC reader optional
• Cameras: Front 8 MP; Rear 13 MP with LED auxiliary light (AF)
• Sensors: G‑Sensor, E‑Compass, Gyro, Ambient Light Sensor
• I/O: 1×USB 3.0 Type A; 1×USB 2.0 Type C OTG (PD 3.0 support); 1×RJ45 LAN; 1×Micro SD slot; 1×SIM slot; 2×digital mics; 2×1W speakers; 2×LED indicators (Power, Battery)
• Mechanical: 226.6 × 147.8 × 21.5 mm; Weight: 900 g
• Environment: Operating humidity 10%–90% RH non‑condensing; Operating temp −20°C to 60°C; Storage temp −30°C to 70°C
• Ruggedness: MIL‑STD‑810H (Shock Method 516.8 Proc I; Vibration Method 514.8 Proc I; Drop 4 ft); IP65
• Power: Battery 7.6V typ. 4200 mAh Li‑Polymer (2S2P); Power rating 19V DC; Adapter 100–240 VAC to 19V DC (standard); Optional 100W PD adapter
• Buttons: 1×Power, 1×Menu, 3×programmable function keys
• Accessories: Standard adapter and power cord; standard battery pack; optional desk dock, vehicle dock/cradle, vehicle charger, battery charger, hand strap, capacitive stylus, PD adapter, 1D/2D barcode scanner
• Security/MDM: SOTI MobiControl compliance
