Windows 10 IoT Enterprise tablet M116AD

Windows 11 IoT Enterprise11.6"Intel® Core i5-1235U

Overview

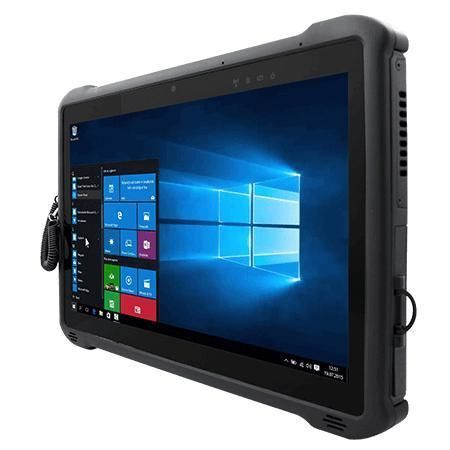

Winmate M116AD is an 11.6-inch Windows rugged tablet PC powered by the Intel® Core™ i5-1235U (Alder Lake). It is engineered for field service, inspection and industrial mobility where sustained performance, outdoor readability and long lifecycle availability are required.

Key features

• 11.6" 1920 x 1080 IPS display, 850 nits with direct optical bonding
• Intel® Core™ i5-1235U processor (up to 4.4 GHz)
• IP65 ingress protection and MIL-STD-810H / MIL-STD-461G compliance options
• Projected Capacitive multi-touch (P-CAP) with Rain, Glove and Stylus modes
• Hot-swappable battery design and USB Type-C with Power Delivery (20V IN)

Performance
The Alder Lake i5 CPU provides a balance of multi-threaded performance and efficiency for professional applications such as field diagnostics, data collection, mobile HMI and asset inspection.

Display & touch
The 11.6" Full HD panel with optical bonding and anti-glare treatment ensures sunlight-readable operation. P-CAP touch supports precise multi-touch input and usable modes for rain, gloves and stylus input.

Battery & power
Hot-swappable battery architecture enables continuous operation with no shutdown during battery replacement. USB Type-C supports Power Delivery 20V IN for flexible charging and vehicle power scenarios.

Connectivity & expandability
Standard and optional connectivity include WLAN, Bluetooth, WWAN (4G LTE / optional 5G), GNSS (GPS/GLONASS) and optional 1D/2D barcode or HF RFID readers. Front and rear cameras support image capture and documentation.

Durability & compliance
M116AD is built to withstand temperature extremes, shock, vibration and drops. It meets MIL-STD-810H test methods and offers MIL-STD-461G EMC options, plus IP65 sealing for outdoor and industrial use.

Specifications (select)

• Model: M116AD
• Display: 11.6" IPS FHD (1920 x 1080), 850 nits, optical bonding
• Processor: Intel® Core™ i5-1235U (up to 4.4 GHz)
• Memory: 8 GB (standard); 16 GB / 32 GB optional
• Storage: 128 GB SSD (standard); options to 2 TB; micro SDXC slot
• OS: Windows 11 IoT Enterprise LTSC (64-bit) default; Windows 10 IoT optional
• Battery: Hot-swappable 11.55 V typ. 4558 mAh (standard); optional 15.4 V 5900 mAh
• Ports: USB-A 3.0 x1, USB-C 3.0 (PD 20V IN) x1, Micro HDMI (opt.), RJ45 (opt.)
• Cameras: Front 2 MP; Rear 8 MP AF + LED
• Dimensions / Weight: 300.67 x 201.97 x 22.5 mm / ~1.4 kg (with standard battery)
• Environmental: Operating -20°C to 60°C; IP65; MIL-STD-810H
• Certifications: CE, FCC; MIL-STD-461G EMC options

Accessories

• Standard: Adapter & power cord, capacitive stylus, standard battery
• Optional: Desk Dock, Vehicle Dock/Cradle, Vehicle Charger, High Capacity Battery, Detachable Keyboard, Carry/Shoulder/Hand Strap, Barcode or HF RFID modules
