Android 13 tablet M101Q9

Android 1510.1"octa-core

Overview

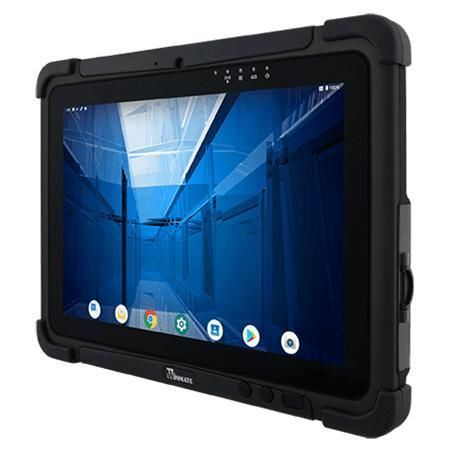

Winmate M101Q9 is a 10.1-inch rugged Android tablet built for field service, inspections and industrial mobility. Powered by Qualcomm® 6490 and shipping with Android 15.0 (Android 13.0 optional), it is intended for industrial buyers, OEMs and system integrators requiring durable, serviceable hardware with long lifecycle availability.

Key Features

• 10.1-inch 1920x1200 LED with Projected Capacitive (P‑CAP) multi-touch
• Sunlight-viewable display with optical bonding and anti-glare treatment (typ. 800 nits)
• Qualcomm® 6490 Octa‑Core up to 2.7 GHz; 8 GB RAM / 128 GB storage
• Android 15.0 default (Android 13.0 optional)
• WLAN and Bluetooth; optional WWAN 4G / 5G; GNSS (GPS/GLONASS)
• MIL‑STD‑810H (shock, drop, vibration) and IP65 front ingress protection
• Touch modes: hand, glove and rain; stylus support; optional integrated 1D/2D barcode reader and NFC

Certifications

• IP65
• MIL‑STD‑810H
• CE
• FCC

Product highlights

• Field-ready computing with Qualcomm® 6490 for multitasking professional apps
• Reliable connectivity for real-time data: Wi‑Fi, Bluetooth, GNSS and optional cellular (4G/5G)
• Outdoor usability: optical bonding + anti‑glare and 800 nits typical brightness for sunlight readability
• Flexible input: P‑CAP multi‑touch supporting rain, glove and stylus operation
• Rugged mechanical design: fanless, wide operating temperature range and drop/shock/vibration ratings for industrial use

Accessories

• Standard: adapter and power cord, standard battery, capacitive stylus
• Optional: high‑capacity battery, desk dock, vehicle dock/cradle, battery charger, vehicle charger, metal vehicle docking, hand/shoulder straps, carry bag, VESA mount kit, micro SD card, USB‑C to HDMI adapter, barcode scanner

Technical specifications

• Display: 10.1 inches, 1920 x 1200, LED P‑CAP multi‑touch
• Brightness: 800 nits; Contrast: 800:1; View angles: 85/85/85/85; Optical bonding; Anti‑glare
• Processor: Qualcomm® 6490, Octa‑Core up to 2.7 GHz
• Memory / Storage: 8 GB RAM / 128 GB
• OS: Android 15.0 (default); Android 13.0 (optional)
• Wireless: WLAN, Bluetooth; WWAN optional 4G / 5G; GNSS: GPS / GLONASS
• Cameras: Front 8 MP; Rear 16 MP with LED and AF
• I/O: 1 x USB 3.0 Type‑C OTG (PD), 1 x USB 2.0 Type‑A, audio combo, Micro SD slot, SIM slot, docking connector
• Dimensions / Weight: 271.9 x 197.3 x 19.5 mm; 1.2 kg (standard battery), 1.4 kg (high capacity)
• Battery: Default 7.7 V typ. 5900 mAh; Optional 7.4 V typ. 10280 mAh; warm swappable optional; typical ~8 hours
• Environment: Operating temp -20°C to 60°C; Humidity 10%–90% RH non‑condensing; Storage -30°C to 70°C
• Ruggedness: MIL‑STD‑810H (shock, vibration, drop 4 ft); IP65
• Security/Manageability: SOTI MobiControl compliance; Kensington lock support
