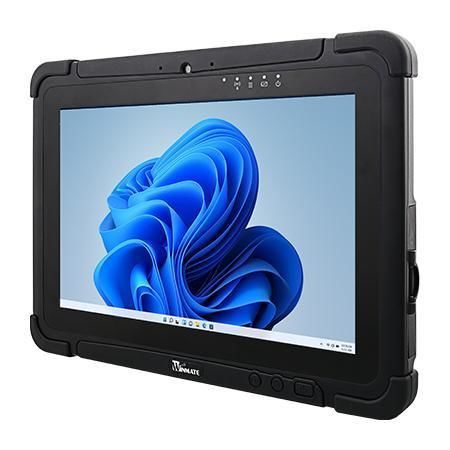

Windows 10 IoT Enterprise tablet M101AN

Windows 11 IoT Enterprise10.1"Intel® Processor N150

Product Overview
Winmate M101AN is a 10.1-inch Windows rugged tablet for field service, inspection and industrial mobility. It integrates an Intel® Processor N150 and is designed for reliable field operation with fanless thermal design, optical-bonded sunlight-readable display and a hot-swappable removable battery system.

Key Features

• Intel® Processor N150 (up to 3.6 GHz)
• 10.1" 1920 x 1200 IPS display with direct optical bonding, 800 nits
• IP65 sealing and MIL-STD-810H rugged housing
• Fanless design for low power and high reliability
• Hot-swappable removable battery (standard and high-capacity options)
• USB Type-C with Power Delivery (20V In) and USB-A 3.0
• Optional 4G/5G WWAN, GNSS, RFID and barcode scanner modules

Overview / Product Highlights
The M101AN delivers efficient multitasking for enterprise applications while prioritizing energy efficiency and field durability. The P-Cap touch supports stylus, glove and wet-touch modes. Ruggedization covers shock, vibration and 4 ft drop (MIL-STD-810H). The display uses direct optical bonding and anti-glare treatment for outdoor visibility.

Connectivity & Expandability

• WLAN and Bluetooth standard
• Optional WWAN (4G/5G) and GNSS (GPS/GLONASS)
• Optional HF/UHF RFID, optional 1D/2D barcode scanner
• IO: USB-A 3.0, USB-C (PD 20V In), micro SDXC, SIM slot, micro HDMI (optional), 19-pin docking connector

Rugged & Environmental
Operating range -20°C to 60°C; storage -30°C to 70°C; humidity 10%–90% RH non-condensing. Protection: IP65; ruggedness: MIL-STD-810H (shock, vibration, 4 ft drop).

Power & Battery
Standard hot-swappable battery: 7.7V typ. 5900 mAh Li-Polymer. Optional high-capacity battery: 7.4V typ. 10280 mAh. Typical operating time: ≈9 hours (standard), ≈16 hours (high capacity). Power rating 19V DC; adapter 100–240V AC to 19V DC.

Software & Security
Default OS: Windows 11 IoT Enterprise LTSC (64-bit). Optional Windows 10 IoT Enterprise LTSC. Security: TPM 2.0, Kensington lock support. SOTI MobiControl compatible.

Camera & Sensors
Front camera 2 MP; rear camera 8 MP with AF and LED. Sensors: ambient light, G-sensor, gyro. GNSS: GPS, GLONASS.

Accessories (Selected)

• Standard: standard battery, adapter and power cord, capacitive stylus
• Optional: desk dock, vehicle cradle, metal vehicle docking, VESA mount kit, shoulder/hand straps, carry bag, battery charger, barcode scanner

Certifications

• CE
• FCC

Technical specifications

• Model: M101AN
• Platform: Intel® N150 (up to 3.6 GHz)
• Display: 10.1" 1920 x 1200 IPS, P-Cap multi-touch, 800 nits, optical bonding, anti-glare
• Memory: 4 GB default; 8 GB / 16 GB optional
• Storage: 128 GB SSD default; micro SDXC; 256 GB / 512 GB optional
• OS: Windows 11 IoT Enterprise LTSC (64-bit) default
• Wireless: WLAN, Bluetooth; WWAN optional (4G/5G)
• GNSS: GPS, GLONASS
• RFID: HF 13.56 MHz optional; UHF optional
• Cameras: 2 MP front; 8 MP rear with AF and LED
• I/O: USB-A 3.0; USB-C (PD 20V In); micro SDXC; SIM slot; micro HDMI (optional); 19-pin docking connector
• Buttons: Power, Home, 2x Volume, 2x programmable keys
• Indicators: 4 LEDs (Power, Battery, HDD, RF)
• Battery: Hot-swappable 7.7V 5900 mAh (standard); 7.4V 10280 mAh (high capacity optional)
• Battery life: ~9 h (standard); ~16 h (high capacity)
• Dimensions: 271.9 x 197.3 x 19.5 mm
• Weight: 1.2 kg (standard battery); 1.4 kg (high capacity)
• Thermal: Fanless design
• Environmental: Operate -20°C to 60°C; Storage -30°C to 70°C; Humidity 10%–90% RH non-condensing
• Ruggedness: MIL-STD-810H; IP65
• Security: TPM 2.0, Kensington lock, SOTI MobiControl
• Certifications: CE, FCC
