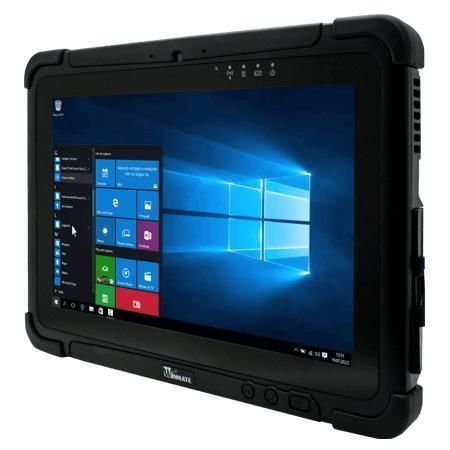

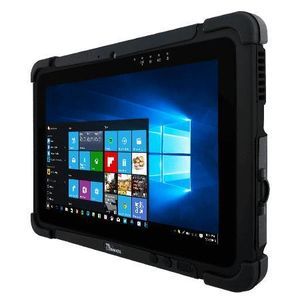

Windows 10 IoT Enterprise tablet M101AD-EX

Windows 11 IoT Enterprise10.1"Intel® Core i5-1235U

Overview
The M101AD-EX is a 10.1" Windows ATEX rugged tablet designed for hazardous and explosive environments. It features an Intel® Core™ i5-1235U processor, sunlight-readable 1920 x 1200 IPS display with optical bonding and anti-glare treatment, P-CAP multi-touch supporting rain/glove/stylus modes, hot-swappable battery, comprehensive wireless connectivity (BT/Wi‑Fi/optional 4G/5G), optional barcode/RFID readers, MIL-STD-810H compliance for shock and vibration, and an IP65 front protection rating.

Key Features

• Intel® Core™ i5-1235U Alder Lake processor
• 10.1” 1920 x 1200 IPS LED Panel with direct optical bonding
• Sunlight readable with anti-glare solution
• Allows cross-zone operations in hazardous and explosive environments
• Ex Certificate: Class I Division 2 (CID2), ATEX/IECEx Zone 2
• USB Type-C port support PD 3.0 and ALT mode

Certifications

• CE
• FCC
• IECEx Class I, Zone 2, Ex ic IIC T4 Gc
• ATEX II 3G Ex ic IIC T4 Gc
• Class I, Division 2 (Groups A, B, C, D, T4)

Product Highlights

• Certified for safe operations in hazardous zones (CID2, ATEX/IECEx Zone 2)
• Outstanding sunlight visibility via optical bonding and anti-glare touch treatment
• Real-time data streaming with optional barcode and RFID readers and wide connectivity options (BT/Wi‑Fi/LTE/5G/GigaLAN)
• Advanced multi-touch experience (Projected Capacitive Multi-Touch) supporting rain, glove and stylus modes
• Rugged design meeting MIL-STD-810H for extreme temperatures, drops, shocks and vibrations

Display
Size: 10.1 inches
Resolution: 1920 x 1200
Type: Projected Capacitive Multi Touch
Panel Brightness: 800 nits
Contrast Ratio: 800:1
View Angles: 85/85/85/85
Bonding: Optical Bonding for Sunlight Viewability
Viewability: Anti-Glare touch treatment

System Specification
Processor: Intel Core i5-1235U (up to 4.4 GHz)
Memory: 8GB DDR5 SDRAM; 16GB DDR5 (optional); 32GB DDR5 (optional)
Storage: 256GB M.2 NVMe SSD; optional 512GB / 1TB / 2TB M.2 NVMe; additional via micro SDXC
Security: TPM 2.0, Kensington Lock
Operating System: Windows 11 IoT Enterprise LTSC (64-bit); Windows 10 IoT Enterprise LTSC (optional)
WLAN: Supported
BT: Supported
WWAN: 4G LTE (optional); 5G (optional)
GNSS: GPS, GLONASS
RFID: HF RFID reader 13.56 MHz (optional)
Sensors: Light sensor, G-sensor, Gyro

Camera
Front Camera: 2 MP front camera
Rear Camera: 8 MP rear camera with auto-focus and LED light

Mechanical
Dimension: 271.5 x 198.2 x 23.3 mm
Weight: 1.2 kg
Cooling System: Fan design

IO Ports
USB Port: 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In and ALT mode)
LAN: 1 x RJ45-10/100/1000 GigaLAN port
Audio: 1 x 3.5mm combo jack; dual digital mic with noise cancellation; dual speaker
SD Card Slot: 1 x Micro SDXC slot
SIM Card Slot: 1 x Nano SIM slot
Indicator: 4x LED indicators (Power, Battery, HDD, RF status)
Docking Connector: 1 x 19-pin docking connector

Environment
Operating Humidity: 10% to 90% RH, non-condensing
Operating Temperature: -10°C to 50°C
Storage Temperature: -30°C to 70°C (-22°F to 158°F)
Shock: MIL-STD-810H Method 516.8 Procedure I
Vibration: MIL-STD-810H Method 514.8 Procedure I
Drop: MIL-STD-810H Method 516.8 4 ft
IP rating: IP65

Power
Battery: Hot-swappable 11.55V, typ. 4558 mAh Li-Polymer Battery (3S2P)
Battery Operating Time: Standard battery ~8 hours
Power Rating: 19V DC
Adapter: 100-240V, 50-60Hz / 19V DC

Accessories (standard & optional)
Standard: Adapter and power cord, capacitive stylus, standard battery
Optional: Desk dock, vehicle dock (without VGA output), vehicle cradle, vehicle charger, hand strap, shoulder strap, carry bag
Optional Modules: 1D/2D barcode reader, HF RFID reader (13.56 MHz)

Security & Management
SOTI MobiControl compliance
Kensington Lock support

caractéristiques / spécifications techniques

• Model: M101AD-EX
• Brand: Winmate
• Processor: Intel Core i5-1235U (up to 4.4 GHz)
• Display: 10.1", 1920x1200 IPS, 800 nits, optical bonding, anti-glare
• Touch: P-CAP multi-touch (rain/glove/stylus)
• Memory: 8GB DDR5 (standard), up to 32GB optional
• Storage: 256GB M.2 NVMe SSD standard; micro SDXC slot; up to 2TB optional
• Cameras: 2MP front; 8MP rear with AF and LED
• Battery: Hot-swappable 11.55V, 4558 mAh (typ.), ~8 hours
• Connectivity: Wi‑Fi, BT, optional 4G/5G, GigaLAN
• Ruggedness: MIL-STD-810H, IP65 (front), Drop 4 ft
• Certifications: CE, FCC, IECEx, ATEX, Class I Division 2
• OS: Windows 11 IoT Enterprise LTSC (64-bit) (Windows 10 IoT optional)
• Weight: 1.2 kg
• Dimensions: 271.5 x 198.2 x 23.3 mm
